Fuel Fill Pipe Removal/Installation

NOTE: If the fuel tank is full, drain the fuel (see FUEL TANK DRAINING ).

Remove the left rear damper (see DAMPER REPLACEMENT ).
Remove the fuel fill cap.
Disconnect the fuel fill tubes (A), from the fuel fill pipe (B).

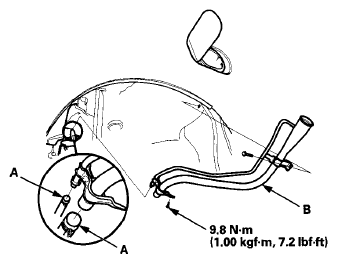

Fig 1: Disconnecting Fuel Fill Tubes From Fuel Fill Pipe With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts and the fuel fill pipe.
Install the parts in the reverse order of removal.
