Fuel Pressure Regulator Replacement

NOTE: If the fuel tank is full, drain the fuel (see FUEL TANK DRAINING ).

Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL AND INSTALLATION ).
Remove the fuel pressure regulator (A).

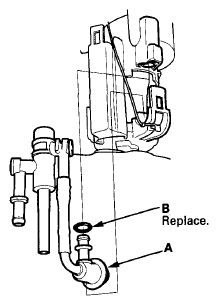

Fig 1: Removing Fuel Pressure Regulator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal with a new O-ring (B).
NOTE:
- Coat the O-ring with clean engine oil; do not use any other oils or fluids.
- Do not pinch the O-ring during installation.
- Use all the new parts supplied in the pressure regulator replacement kit.
Install the fuel tank unit (see FUEL TANK UNIT REMOVAL AND INSTALLATION ).
