Fuel Pressure Test

Special Tools Required

• Fuel Pressure Gauge 07406-004000B
• Fuel Pressure Gauge Attachment Set 07AAJ-S6MA150

1. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
2. Attach the fuel pressure gauge set and the fuel pressure gauge.

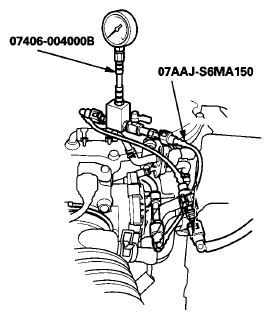

   Fig 1: Checking Fuel System Lines, Hoses And Fuel Filter

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Start the engine, and let it idle.
   • If the engine starts, go to step 5.
   • If the engine does not start, go to step 4.
4. Check to see if the fuel pump is running: Listen to the fuel filler port with the fuel fill cap removed. The fuel pump should run for 2 seconds when the ignition switch is first turned to ON (II).
   • If the pump runs, go to step 5.
   • If the pump does not run, refer to the DTC TROUBLESHOOTING .
5. Read the fuel pressure gauge. The pressure should be 390-440 kPa (4.0-4.5 kg/cm² , 57-64 psi).
   • If the pressure is OK, the test is complete.
   • If the pressure is out of specification, replace the fuel pressure regulator (see Fuel Pressure Regulator Replacement ) and the fuel filter (see Fuel Filter Replacement ), then recheck the fuel pressure.
