Fuel Pump Control Module Replacement

  1. Remove the rear seat-back (see REAR SEAT REMOVAL/INSTALLATION ).
  2. Disconnect the fuel pump control module connector (A).

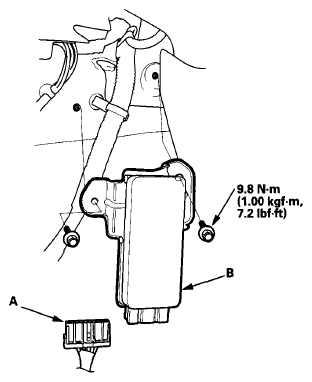

    Fig 1: Disconnecting Fuel Pump Control Module Connector With Torque Specifications
    G07353967Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the fuel pump control module (B).
  4. Install the parts in the reverse order of removal.
