PCV Valve Replacement

  1. Remove the engine cover (see step 2 on REMOVAL ).
  2. Remove the bolt (A).

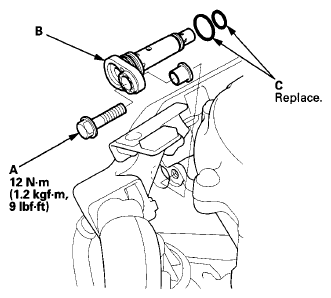

    Fig 1: Removing Bolt With Torque Specifications
    G07354039Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the PCV valve (B).
    NOTE: Take care not to spill oil on the hot exhaust manifold.
  4. Install the parts in the reverse order of removal.
    NOTE:
    • When installing a new PCV valve, make sure the O-rings (C) are in place.
    • When installing a used PCV valve, use new O-rings (C).
