Front Bank (Bank2)

  1. Disconnect the front A/F sensor 6P connector (A), then remove the A/F sensor (B).

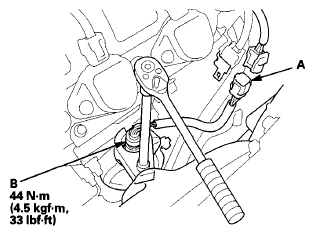

    Fig 1: Disconnecting Front A/F Sensor 6P Connector With Torque Specifications
    G07362070Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the parts in the reverse order of removal.
