CMP Sensor Replacement

Remove the timing belt (see TIMING BELT REMOVAL ).
Remove the front camshaft pulley (CMP pulse plate) (A).

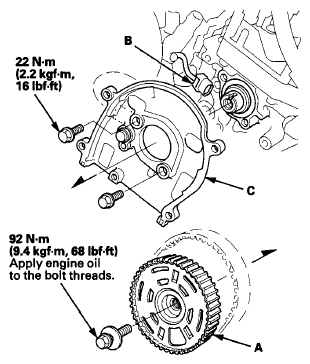

Fig 1: Removing Front Camshaft Pulley With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the CMP sensor connector (B), then remove the back cover (C).
Remove the CMP sensor (A) from the back cover.

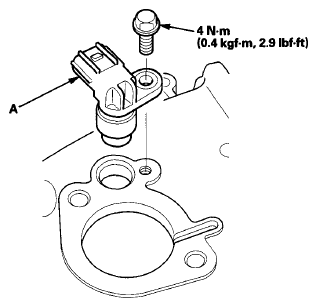

Fig 2: Removing CMP Sensor From Back Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal, then reinstall the timing belt (see TIMING BELT INSTALLATION ).
Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
