Knock Sensor Replacement

  1. Remove the intake manifold (see REMOVAL ).
  2. Remove the injector rails and the injector base (see INJECTOR BASE REMOVAL AND INSTALLATION ).
  3. Disconnect the knock sensor connector (A).

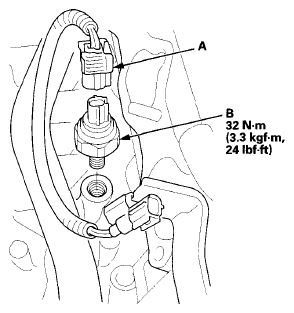

    Fig 1: Disconnecting Knock Sensor Connector With Torque Specifications
    G07362077Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the knock sensor (B).
  5. Install the parts in the reverse order of removal.
