MAP Sensor Replacement

  1. Remove the engine cover (see step 2 on INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  2. Disconnect the MAP sensor connector (A).

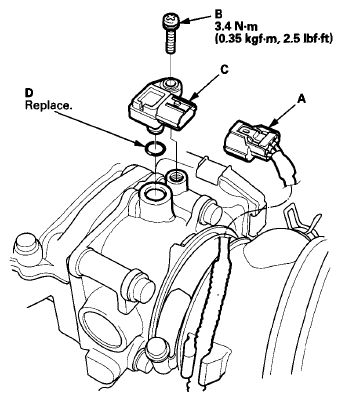

    Fig 1: Disconnecting Map Sensor Connector With Torque Specifications
    G07362066Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screw (B).
  4. Remove the MAP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
