Seat Belts: Inspection: Retractor

Before installing the retractor, check that the seat belt can be pulled out freely.
Make sure that the seat belt does not lock when the retractor (A) is leaned slowly up to 15° from the mounted position. The seat belt should lock when the retractor is leaned over 40°. Do not attempt to disassemble the retractor.
Front

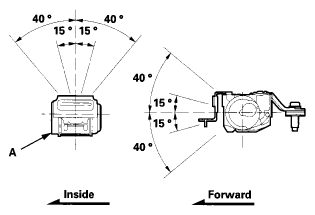

Fig 1: Identifying Retractor Angles For Front
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

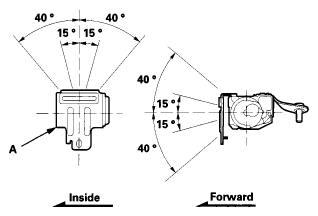

Fig 2: Identifying Retractor Angles For Rear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear center

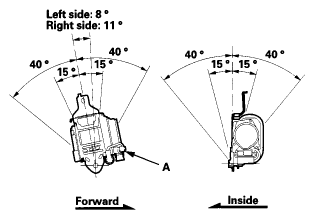

Fig 3: Identifying Retractor Angles For Rear Center
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the seat belt with a new assembly if it does not function properly. Do not disassemble any part of the seat belt for any reason.
