Fluid Check/Replacement

Check

1. Remove the right upper fender trim (see UPPER FENDER TRIM REPLACEMENT ).
2. Check the reservoir (A) at regular intervals, and add the recommended fluid as necessary to fill the reservoir to the upper level line (B). Always use Acura Power Steering Fluid. Using any other type of power steering fluid or automatic transmission fluid can cause increased wear, fluid leaks, and poor steering in cold weather.
   NOTE: If the fluid is dirty or contaminated, the screen in the reservoir may be partially blocked. Inspect the reservoir screen for any debris. If the reservoir screen is clogged, replace the reservoir, and check for the source of the contamination.

   System capacity:

   0.32 L (0.34 US qt) at disassembly

   Reservoir capacity:

   1.1 L(1.2 USqt)

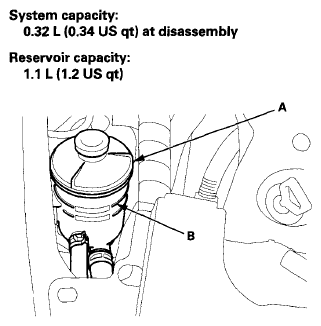

   Fig 1: Inspecting Reservoir Capacity

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Replacement

3. Raise the reservoir, then disconnect the return hose (A) to drain the reservoir. Take care not to spill the fluid on the vehicle. Wipe off any spilled fluid at once.
   NOTE: Inspect the reservoir screen for any debris. If the reservoir screen is clogged, replace the reservoir, and check for the source of the contamination.
   Fig 2: Inspecting Reservoir Screen For Any Debris

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Connect a hose (B) of suitable diameter to the disconnected return hose, and put the hose end in a suitable container.
5. Start the engine, let it run at idle, and turn the steering wheel from lock to lock several times. When fluid stops running out of the hose, shut off the engine. Discard the fluid.
   NOTE: Stop the engine immediately once the fluid stops running out of the hose to prevent pump damage.
6. Reinstall the return hose on the reservoir.
7. Fill the reservoir to the upper level line (C).
8. Start the engine and run it at fast idle, then turn the steering from lock to lock several times to bleed air from the system.
9. Recheck the fluid level, and add some if necessary. Do not fill the reservoir beyond the upper level line.
10. If the fluid is contaminated, dark, or discolored, repeat the procedure as necessary until the system is clean.
11. Install the right upper fender trim (see UPPER FENDER TRIM REPLACEMENT ).
