Exploded View

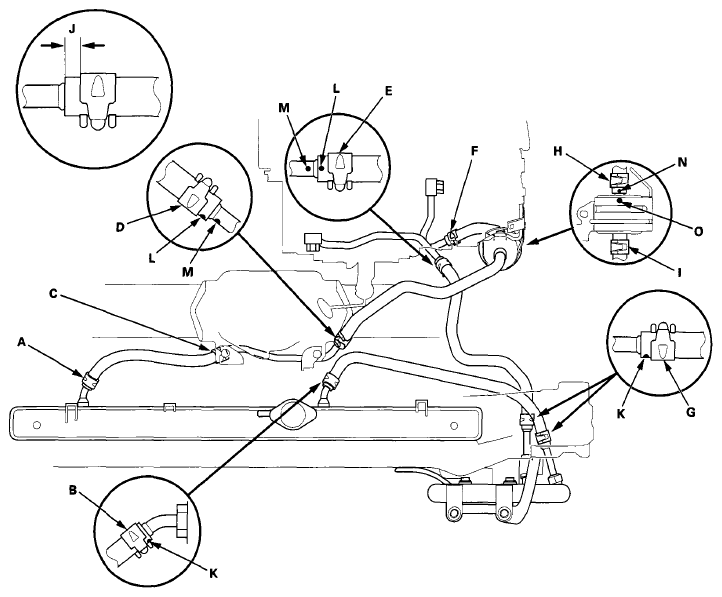

Fig 1: Exploded View Of ATF Cooler Hose

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: When installing the hose clamps, make sure they do not interfere with the surrounding parts.

Install the ATF cooler hoses over the ATF cooler lines with the clips at the appropriate points in reference to the following list. Align the paint marks (K) facing down.

PAINT MARKS REFERENCE CHART

Point	Distance from Hose End to Clip (J)	Hose End Contact Point
A	2-4 mm (0.08-0.16 in)	Bulge
B	2-4 mm (0.08-0.16 in)	Bulge
C	6-8 mm (0.24-0.31 in)	Bulge
D
E
F
G
H	6-8 mm (0.24-0.31 in)	ATF filter housing
I	6-8 mm (0.24-0.31 in)	ATF filter housing

Align the paint marks (L) on the ATF cooler hoses with the paint marks (M) on the ATF cooler lines.
Align the paint mark on the ATF cooler hose end (N) with the paint mark (O) on the ATF filter holder.
Refill the transmission with ATF to the proper level (see ATF LEVEL CHECK ).
