ATF Filter Replacement

NOTE: The ATF filter is not a scheduled maintenance item. Replace the filter only if it is leaking, or contaminated, or when the transmission is being overhauled or replaced with a remanufactured unit.
  1. Raise the vehicle on a lift, and make sure it is securely supported.
  2. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
  3. Remove the drain plug (A) and the sealing washer (B), and drain the ATF.

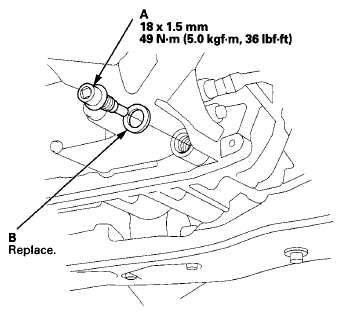

    Fig 1: Removing Drain Plug And Sealing Washer With Torque Specifications
    G07362444Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Reinstall the drain plug with a new sealing washer.
  5. Remove the harness clamp (A) from the ATF filter holder (B).
    Fig 2: Removing Harness Clamp From ATF Filter Holder With Torque Specifications
    G07362445Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Disconnect the ATF cooler hoses (C) from the ATF filter (D).
  7. Remove the ATF filter holder, and remove the ATF filter.
  8. Install a new ATF filter, and secure it with its holder and bolt.
  9. Connect the ATF cooler hoses (see ATF COOLER HOSE REPLACEMENT  ).
  10. Install the harness clamp to the ATF filter holder.
  11. Install the splash shield (see SPLASH SHIELD REPLACEMENT ).
  12. Refill the transmission with ATF (see step  7 ).
