ATF Temperature Sensor Replacement

Raise the vehicle on a lift, or apply the parking brake, block both rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
Remove the drain plug (A) and sealing washer (B), and drain the automatic transmission fluid (ATF).

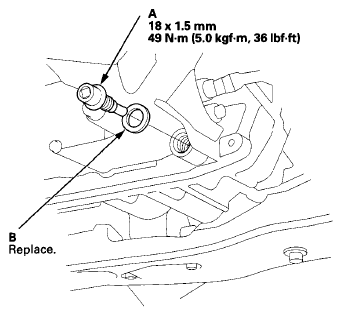

Fig 1: Removing Drain Plug And Sealing Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the drain plug with a new sealing washer.
Disconnect the ATF temperature sensor connector, then remove the ATF temperature sensor (A).

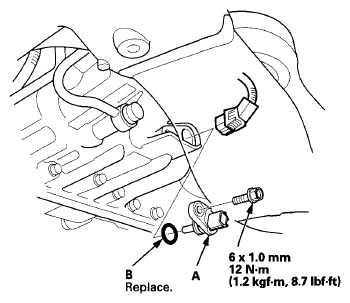

Fig 2: Removing ATF Temperature Sensor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new O-ring (B) on a new ATF temperature sensor, and install the ATF temperature sensor.
Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
Install the splash shield (see SPLASH SHIELD REPLACEMENT ).
Refill the transmission with ATF (see step 7 ).
