Line Pressure Switch Replacement
- Do the battery removal procedure (see
REMOVAL
).
- Remove the air cleaner (see
AIR CLEANER REMOVAL/INSTALLATION
).
- Remove the battery base (see step 9
).

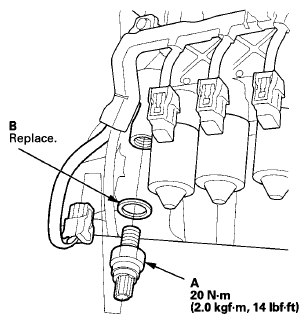

- Disconnect the line pressure switch connector, and remove the line pressure switch (A) and the sealing washer (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install a new line pressure switch and a new sealing washer, and tighten the switch.
- Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
- Install the battery base (see step 79
).
- Install the air cleaner (see
AIR CLEANER REMOVAL/INSTALLATION
).
- Do the battery installation procedure (see
INSTALLATION
).
