Grade Logic Control: Ascending Control

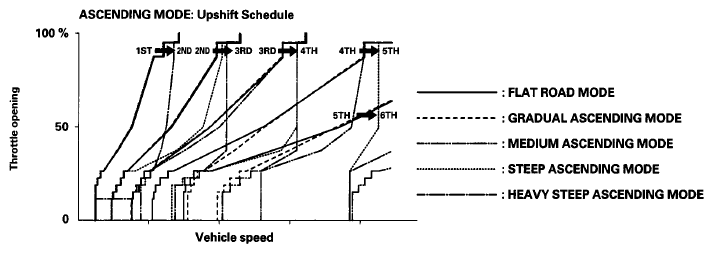

When the PCM determines that the vehicle is climbing a hill in D and in S with automatic shift mode, the system extends the engagement area of 1st gear, 2nd gear, 3rd gear, 4th gear, and 5th gear to prevent the transmission from frequently shifting between 1st and 2nd gears, between 2nd and 3rd gears, between 3rd and 4th gears, between 4th and 5th gears, and between 5th and 6th gears, so the vehicle can run smoothly and have more power when needed.
NOTE:
Shift commands stored in the PCM between 1st and 2nd gears, between 2nd and 3rd gears, between 3rd and 4th gears, between 4th and 5th gears, and between 5th and 6th gears, enable the PCM to automatically select the most suitable gear based on the steepness of the grade.
