Transfer Gear Backlash Measurement

Raise the vehicle on a lift, and make sure it is supported securely.
Shift the transmission into N.

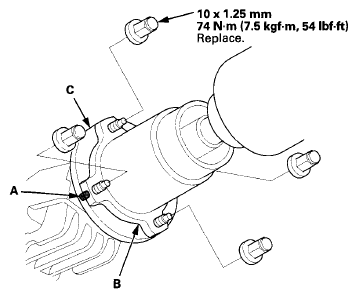

Make reference marks (A) across the propeller shaft (B) and the transfer companion flange (C).

Fig 1: Reference Marks For Propeller Shaft And Transfer Companion Flange With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Separate the propeller shaft from the transfer companion flange.

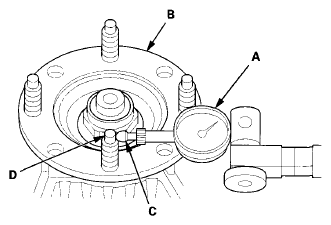

Set a dial indicator (A) on the transfer companion flange (B); position the dial indicator tip (C) on the top of the bolt (D).

Fig 2: Positioning Dial Indicator Tip On Top Of Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure transfer gear backlash.
Standard: 0.06-0.16 mm (0.0024-0.0063 in)
If the transfer gear backlash is out of the standard, replace the transfer assembly.
