Engine Start/Stop Switch Test/Replacement

Remove the driver's center trim (see DASHBOARD CENTER TRIM REMOVAL/INSTALLATION ).
Disconnect the 10P connector (A) from the engine start/stop switch (B).

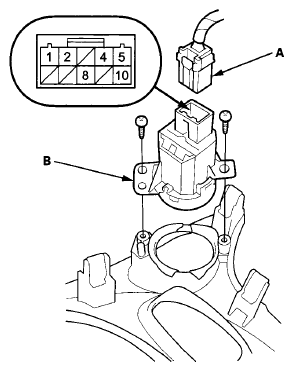

Fig 1: Identifying 10P Connector And Engine Start/Stop Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws, and the engine start/stop switch.
Check for continuity between the terminals in each switch position according to the table.
NOTE:
- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting on the digital volt/ohm meter to check the diode bias.
- Be careful of this characteristic; a diode is one that conducts fully in one direction (forward) and not at all in the opposite direction (reverse).

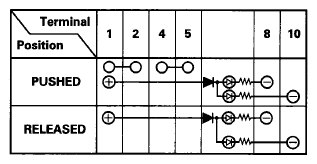

  Fig 2: Engine Start/Stop Switch Continuity Reference Chart
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal.
