Keyless Access System Mode Switch Test/Replacement

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the keyless access system mode switch (B).

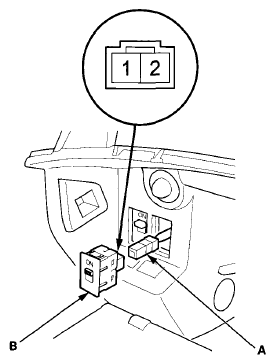

Fig 1: Identifying 2P Connector And Keyless Access System Mode Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Push out the keyless access system mode switch from the glove box.
Check for continuity between the terminals in each switch position according to the table.

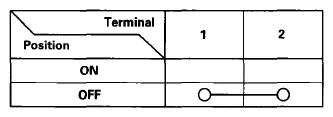

Fig 2: Keyless Access System Mode Switch Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
Install the switch in the reverse order of removal.
