Multi- Information Display Indication Pattern

NOTE: Some examples of indication patterns are shown.

When the door is opened and the power mode is OFF, the display alternates every 3 seconds.

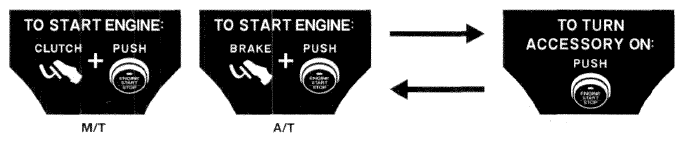

Fig 1: Multi- Information Display Indication Pattern - Power Mode OFF

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When the power mode is ACC, the display alternates in 3 seconds.

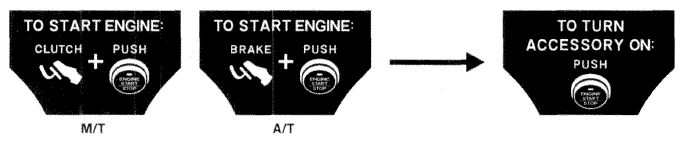

Fig 2: Multi- Information Display Indication Pattern - Power Mode ACC

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When the power mode is ON.

Fig 3: Multi- Information Display Indication Pattern - Power Mode ON For M/T

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Multi- Information Display Indication Pattern - Power Mode ON For A/T

Courtesy of AMERICAN HONDA MOTOR CO., INC.
