Park Pin Switch Test

Remove the center console panel (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION ).
Disconnect the A/T shift lock solenoid/park pin switch 4P connector (A) from the park pin switch (B).

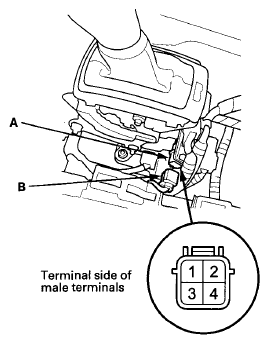

Fig 1: Identifying A/T Shift Lock Solenoid/Park Pin Switch 4P Connector And Park Pin Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between terminals No. 3 and No. 4.
- There should be continuity when the shift lever button is pressed or the shift lever is moved out of P.
- There should be no continuity when the shift the shift lever is moved to P and the shift lever button is released.
If the continuity is not as specified, check the shift cable adjustment (see SHIFT CABLE ADJUSTMENT ). If the cable adjustment is OK, go to step 5.
If the park pin switch fails the test, replace the park pin switch (see PARK PIN SWITCH REPLACEMENT ).
Install the parts in the reverse order of removal (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION ).
