Power Window Master Switch Replacement

  1. Remove the driver's door armrest (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the two screws (A), then remove the bracket (B) from the armrest assembly (C).

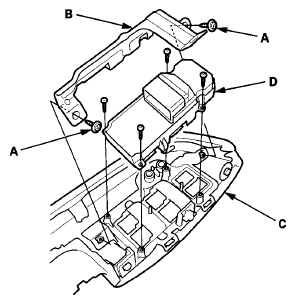

    Fig 1: Identifying Armrest Assembly, Bracket, Screws And Power Window Master Switch
    G08071484Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the four screws and the power window master switch (D).
  4. Install the switch in the reverse order of removal.
  5. Resetting the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT  ).
