With SH-AWD

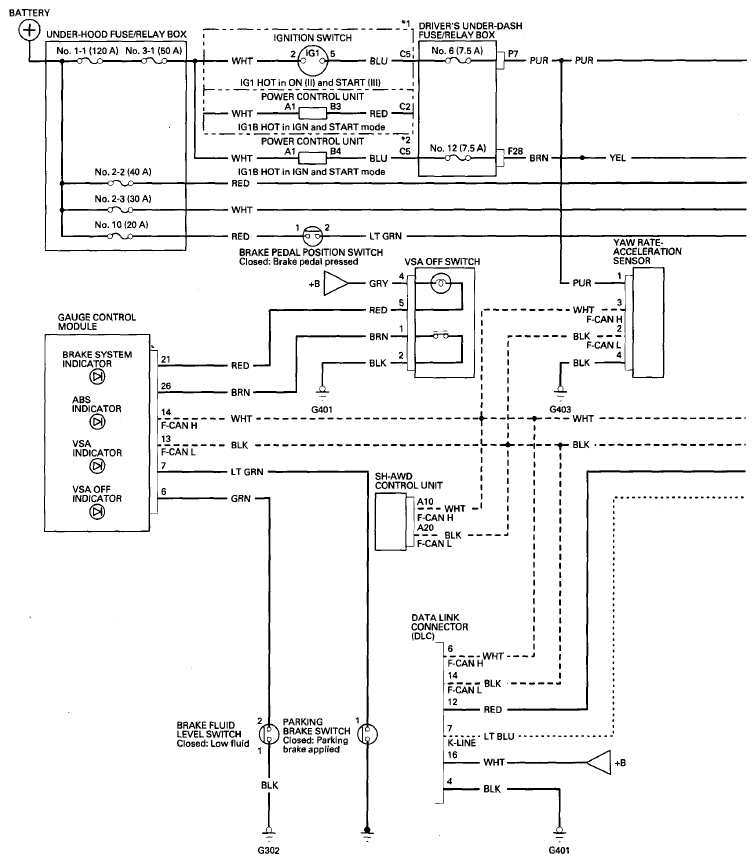

Fig 1: VSA System (With SH-AWD) - Circuit Diagram (1 Of 2)

G08067155

Courtesy of AMERICAN HONDA MOTOR CO., INC.

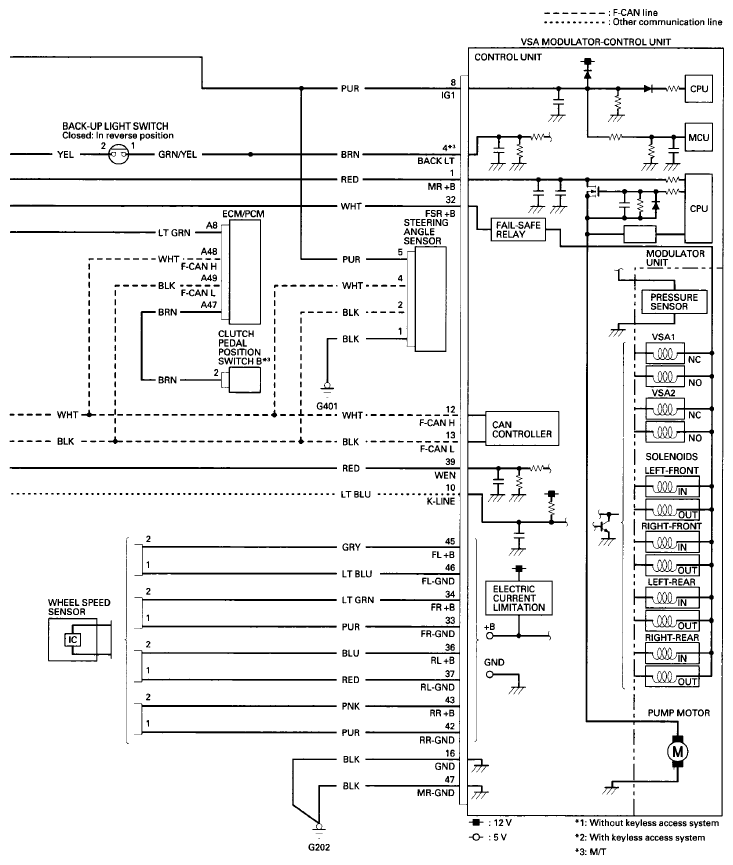

Fig 2: VSA System (With SH-AWD) - Circuit Diagram (2 Of 2)

G08067156

Courtesy of AMERICAN HONDA MOTOR CO., INC.

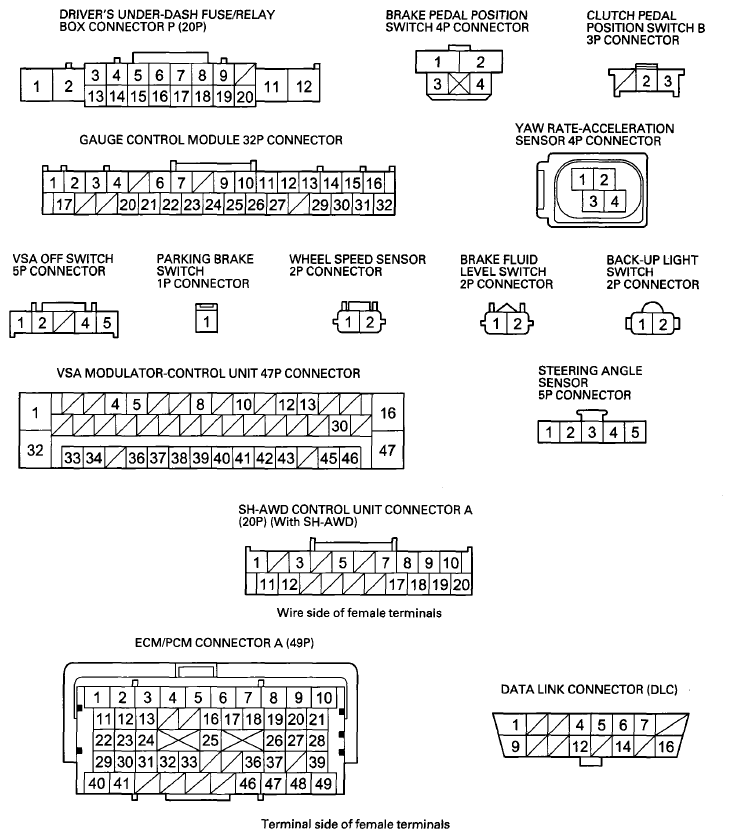

Fig 3: VSA System P (20P), 4P (BPP), 3P, 32P, 4P (YAW), 5P (VSA OFF), 1P, 2P (WSS), 2P (BFL), 2P (Back-Up Light Switch), 47P, 5P (SAS), A (20P) (With SH-AWD), A (49P) & DLC Connector End Views

G08067157

Courtesy of AMERICAN HONDA MOTOR CO., INC.
