VSA Sensor Neutral Position Memorization

NOTE: Do not press the brake pedal during this procedure.

Park the vehicle on a flat and level surface, with the steering wheel in the straight ahead position.
With the ignition switch in LOCK (0), or press the engine start/stop button to select the OFF mode, connect the HDS to the data link connector (DLC) (A) under the driver's side of the dashboard.

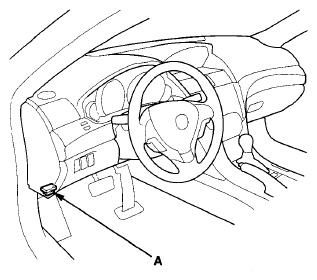

Fig 1: Identifying Data Link Connector (DLC)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.
Make sure the HDS communicates with the vehicle and the VSA modulator-control unit. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
Select VSA ADJUSTMENT, then select ALL SENSORS with the HDS, and follow the screen prompts.
NOTE: See the HDS Help menu for specific instructions.
Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
