Wheel Speed Sensor Replacement: Front

  1. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
  2. Remove the front wheel.
  3. Release the clamp (A), then disconnect the wheel speed sensor connector (B).

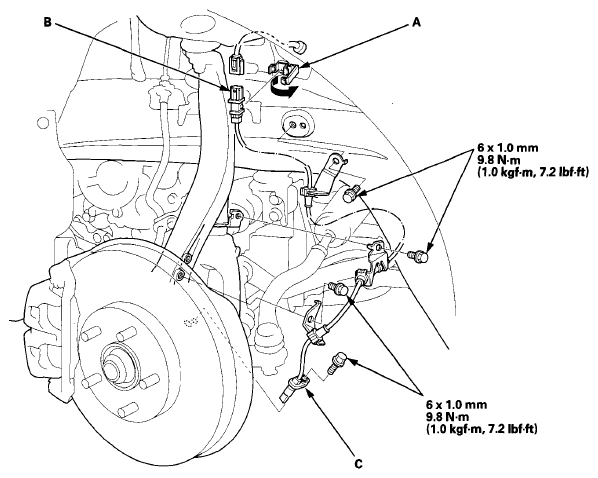

    Fig 1: Clamp, Wheel Speed Sensor Connector, Wheel Speed Sensor & Fasteners With Torque Specifications
    G08067227Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts and the wheel speed sensor (C).
  5. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the wheel bearing, it is faulty.
    • Make sure there is no debris in the sensor mounting hole.
