Relay And Control Unit Locations: Dashboard: Notes

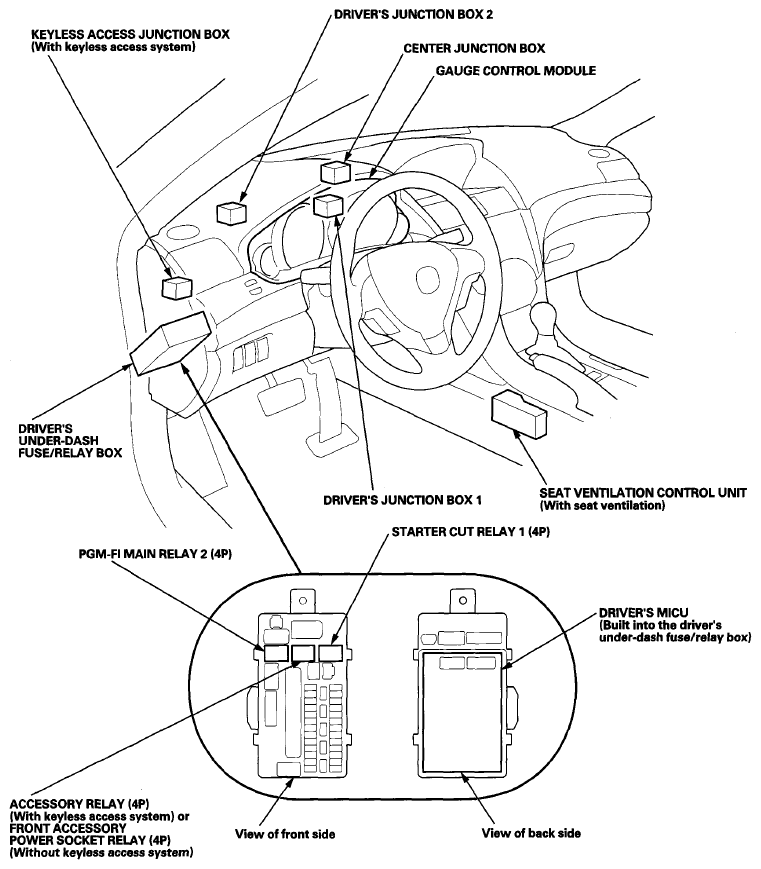

Fig 1: Dashboard Components Location

G08067448

Courtesy of AMERICAN HONDA MOTOR CO., INC.
