Relay And Control Unit Locations
>>
Dashboard
>>
Without Keyless Access System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Without Keyless Access System

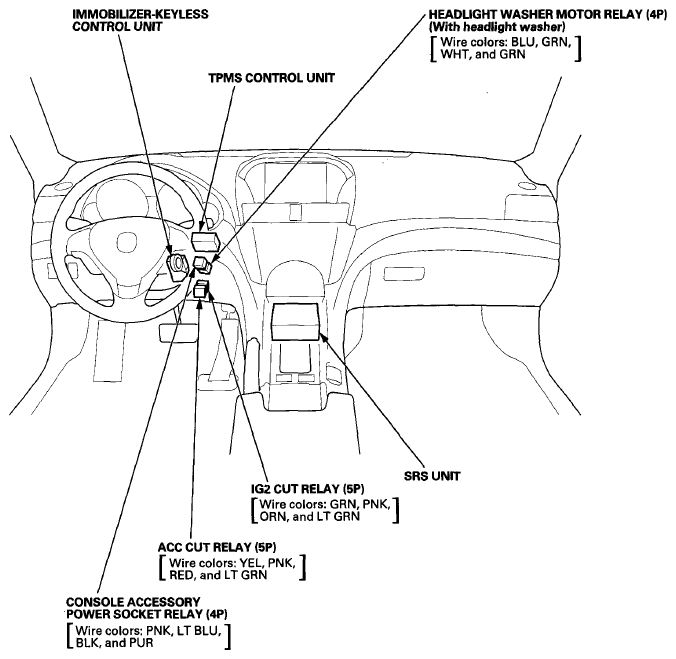

Fig 1: Identifying Dashboard Without Keyless Access System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
