Component Location Index & Drive Belt Routing

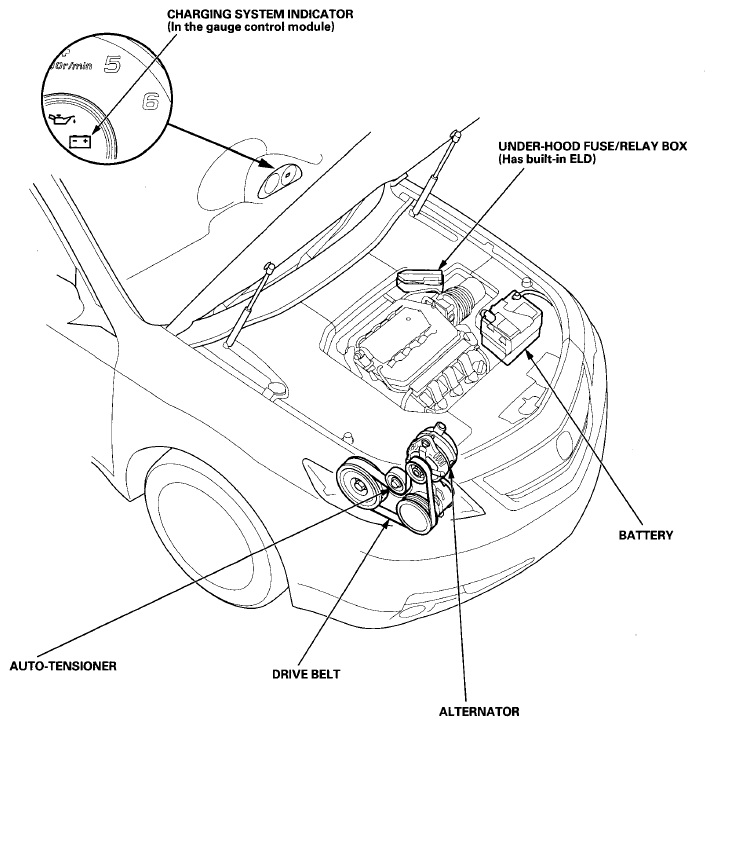

Fig 1: Charging System Components Location & Drive Belt Routing
G08068583Courtesy of AMERICAN HONDA MOTOR CO., INC.
