Drive Belt Auto-Tensioner Replacement

Remove the drive belt .
Remove the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
Remove the auto-tensioner.

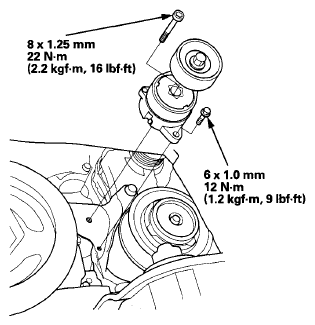

Fig 1: Drive Belt Auto-Tensioner And Related Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the auto-tensioner in the reverse order of removal.
