Engine Oil Level Check

  1. Park the vehicle on level ground, and start the engine. Hold the engine speed at 3, 000 RPM with no load (in neutral (M/T model) or P or N (A/T model)) until the radiator fan comes on, then turn off the engine, and wait a few minutes.
  2. Remove the dipstick, and wipe off the dipstick, then reinstall the dipstick.
  3. Remove the dipstick, and check the engine oil level. It should be between the upper mark (A) and the lower mark (B).

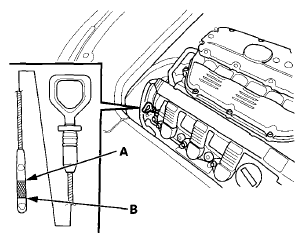

    Fig 1: Identifying Upper Mark And Lower Mark On Oil Level Check
    G08069179Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the engine oil level is near or below the lower mark, check for oil leakage, and add the engine oil (see step  4) to bring it to the upper mark.
