Front Engine Mount Removal and Installation: Installation

  1. Connect the vacuum hose (A), then align the front engine mount with its mounting holes and install the new front engine mount mounting bolts (B).
    NOTE: A/T model: Do not bend the ATF cooler pipe when installing the front engine mount.

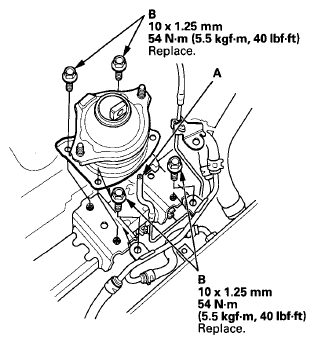

    Fig 1: Vacuum Hose, Front Engine Mount Mounting Bolts With Torque Specifications (A/T Model)
    G08068718Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the jack and the wood block.
  3. Tighten the new front engine mount bolt (A), then install the front engine mount stop (B) using new nuts.

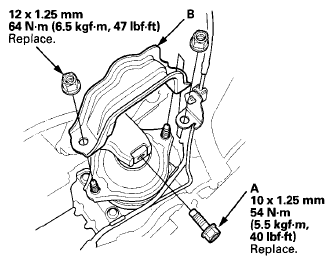

    Fig 2: Front Engine Mount Bolt And Front Engine Mount Stop With Torque Specifications
    G08068719Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the front warm up TWC (see WARM UP TWC REMOVAL/INSTALLATION ).
  5. Install the engine compartment covers (see ENGINE COMPARTMENT COVER REPLACEMENT ).
