Piston, Pin, and Connecting Rod Replacement: Reassembly

Install a piston pin snap ring (A) only on one side.

Fig 1: Installing Piston Pin Snap Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Coat the piston pin bore in the piston, the bore in the connecting rod, and the piston pin with new engine oil.

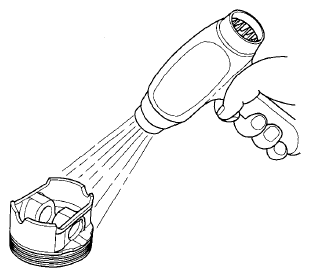

Heat the piston to about 158 °F (70 °C).

Fig 2: Heating Piston
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Assemble the piston (A) and the connecting rod (B) with the embossed marks (C) on the same side. Install the piston pin (D).
NOTE: Apply new engine oil to the piston pin.

Fig 3: Identifying Embossed Marks On Piston And Connecting Rod
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Identifying Piston, Connecting Rod And Piston Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the remaining snap ring.
Reassemble the other pistons the same way.
