DTC P0714: ATF Temperature Sensor Intermittent Failure: Notes

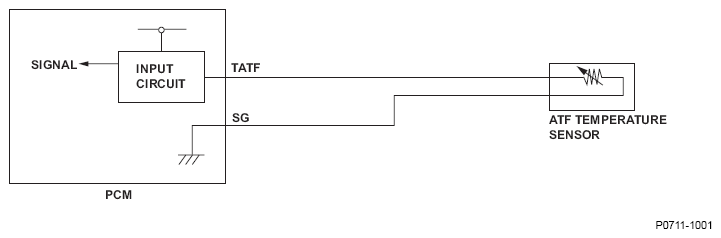

Fig 1: ATF Temperature Sensor - Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

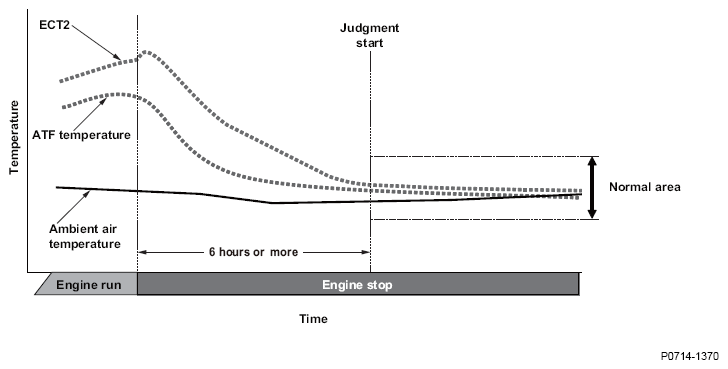

Fig 2: ATF Temperature Versus Time Characteristics Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.
