DTC P2101: Electronic Throttle Control System (ETCS) Malfunction: Notes

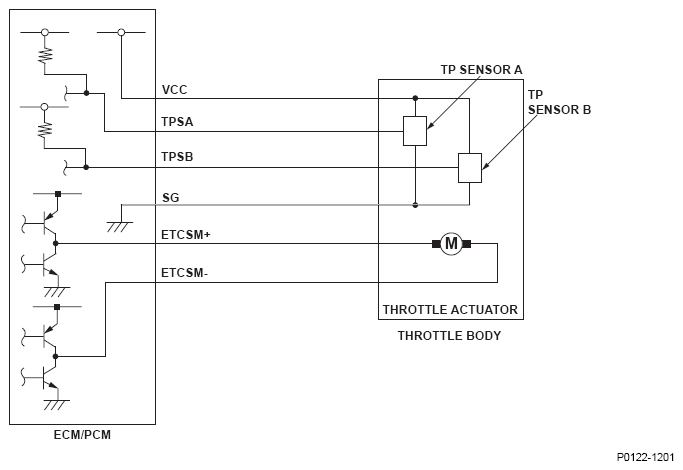

Fig 1: Throttle Position Sensor - Circuit Diagram
G08582654Courtesy of AMERICAN HONDA MOTOR CO., INC.
