Without SH-AWD

  1. Raise the vehicle on a lift
  2. Remove the exhaust pipe hangers (A).

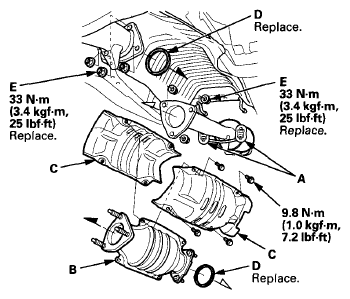

    Fig 1: Exhaust Pipe Hangers, Under-Floor TWC, Converter Cover, Gasket And Self-Locking Nuts With Torque Specifications
    G08067262Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the under-floor TWC (B).
  4. Remove the converter cover (C).
  5. Install the parts in the reverse order of removal with new gaskets (D) and new self-locking nuts (E).
