EGR Pipe Replacement

Raise the vehicle on a lift.
Remove the splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
Remove the mounting nuts (A).

Fig 1: Mounting Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lower the vehicle.
Remove the mounting bolts (A).

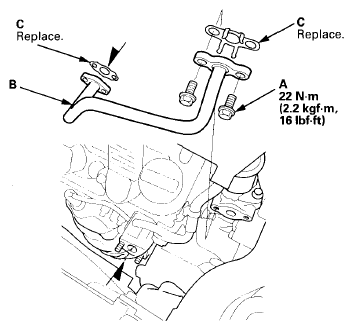

Fig 2: EGR Pipe, Gasket And Mounting Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EGR pipe (B).
Install the parts in the reverse order of removal with new gaskets (C).
