EGR Valve Replacement

  1. Disconnect the EGR valve 5P connector (A).

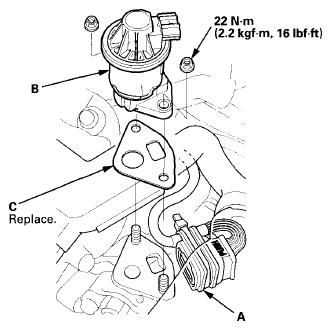

    Fig 1: EGR Valve 5P Connector, Gasket And EGR Valve With Torque Specifications
    G08069865Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the EGR valve (B).
  3. Install the parts in the reverse order of removal with a new gasket (C).
