Without SH-AWD

  1. Disconnect the EVAP canister vent shut valve 2P connector (A).

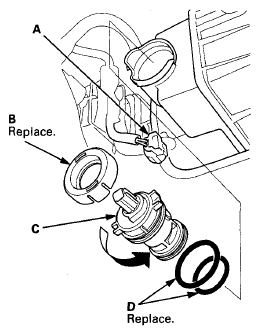

    Fig 1: Identifying EVAP Canister Vent Shut Valve 2P Connector, Shut Valve And Cap
    G08069942Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the cap (B).
  3. Remove the EVAP canister vent shut valve (C).
  4. Install the parts in the reverse order of removal with new O-rings (D) and a new cap.
    NOTE: Do not coat the O-rings with oil.
