ECM/PCM Circuit Diagram

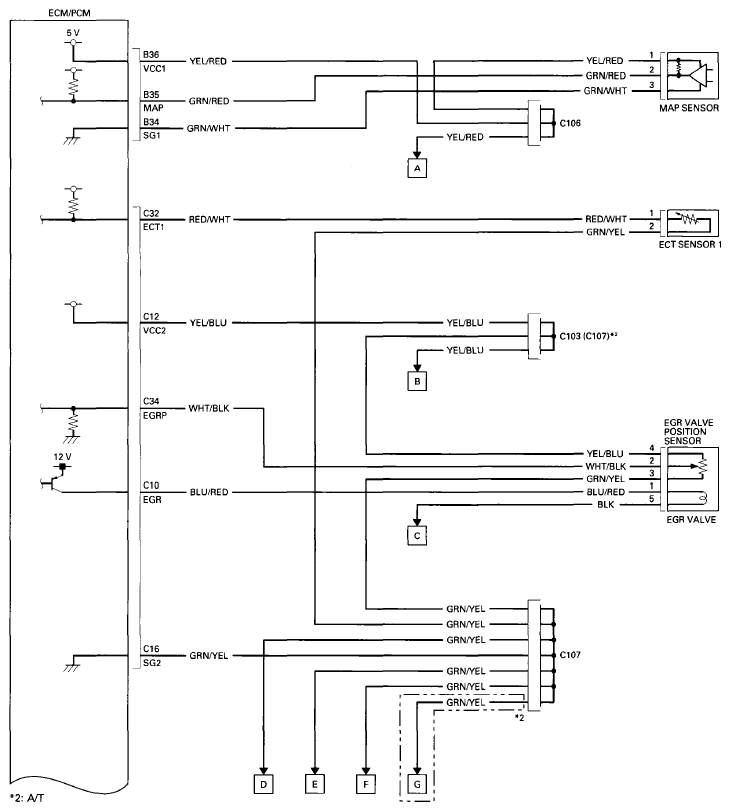

Fig 1: ECM/PCM - Circuit Diagram (1 Of 18)

G08069286

Courtesy of AMERICAN HONDA MOTOR CO., INC.

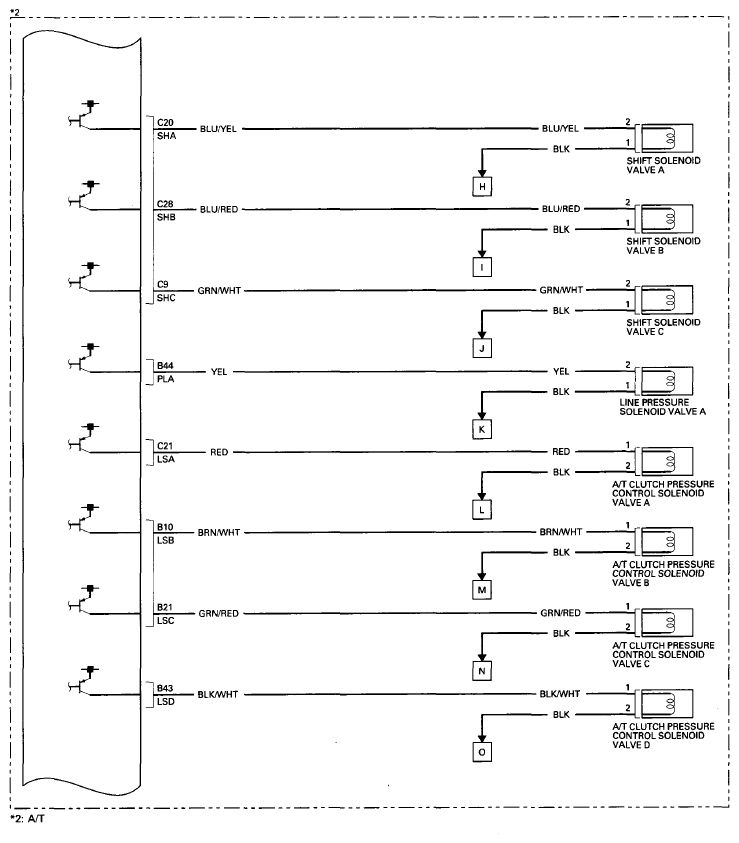

Fig 2: ECM/PCM - Circuit Diagram (2 Of 18)

G08069287

Courtesy of AMERICAN HONDA MOTOR CO., INC.

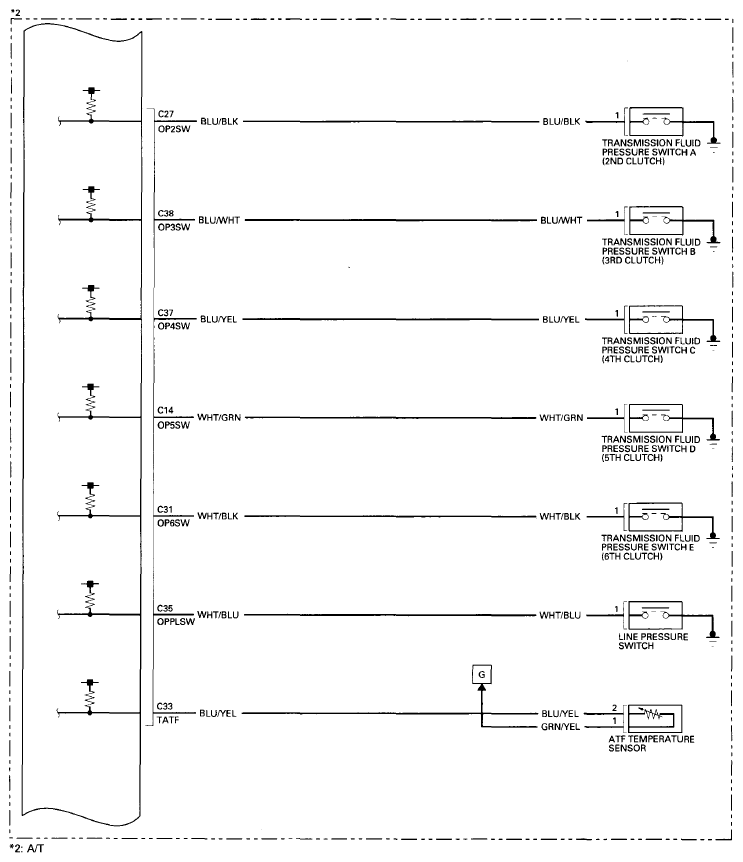

Fig 3: ECM/PCM - Circuit Diagram (3 Of 18)

G08069288

Courtesy of AMERICAN HONDA MOTOR CO., INC.

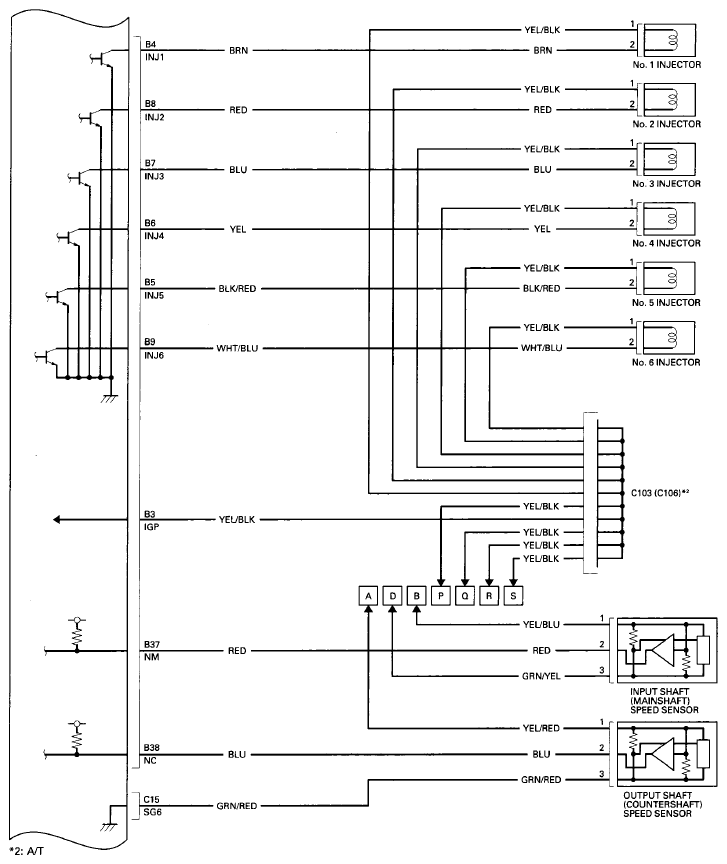

Fig 4: ECM/PCM - Circuit Diagram (4 Of 18)

G08069289

Courtesy of AMERICAN HONDA MOTOR CO., INC.

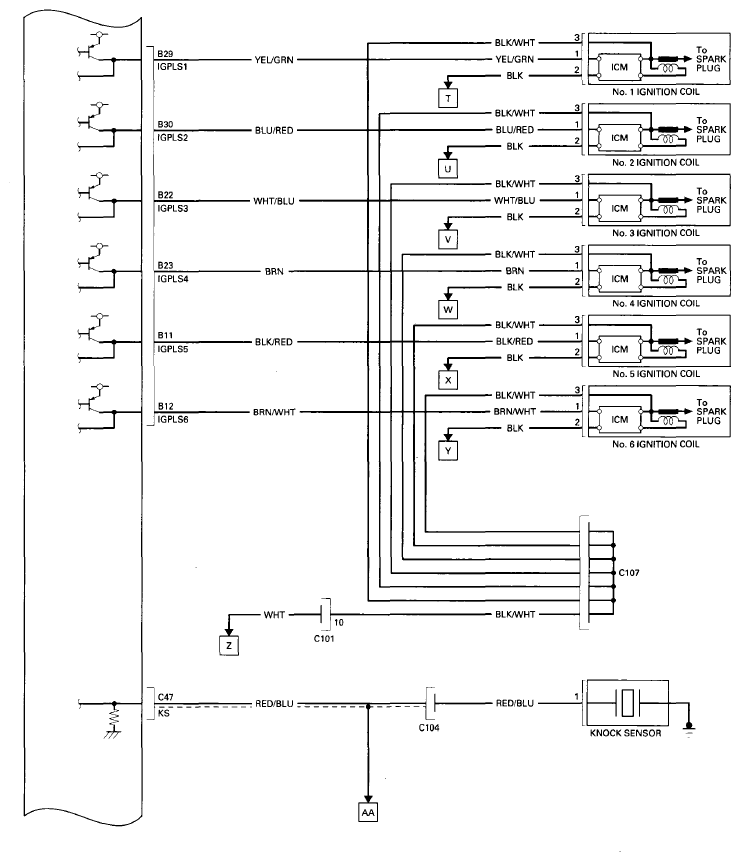

Fig 5: ECM/PCM - Circuit Diagram (5 Of 18)

G08069290

Courtesy of AMERICAN HONDA MOTOR CO., INC.

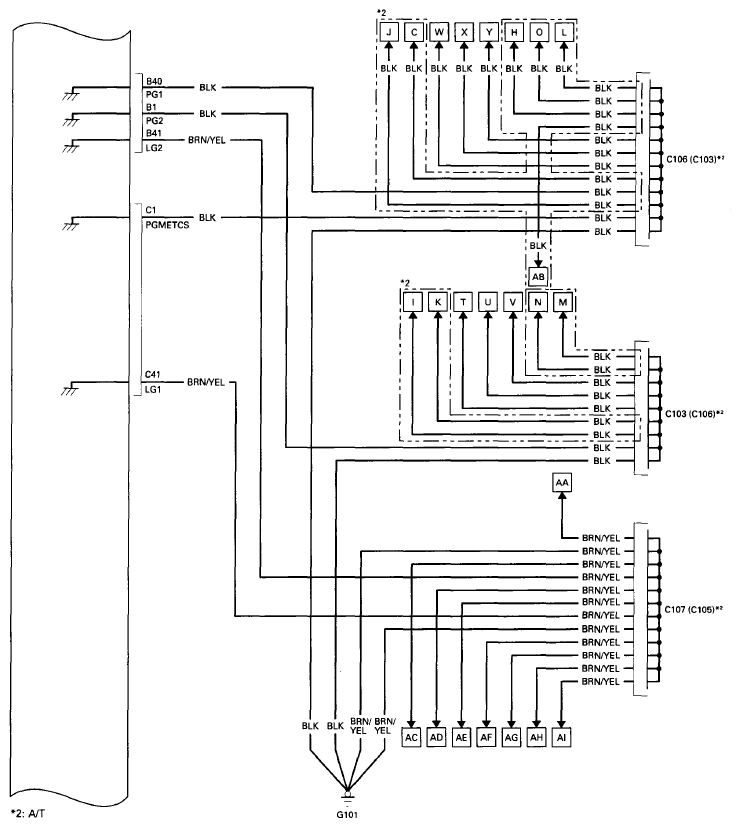

Fig 6: ECM/PCM - Circuit Diagram (6 Of 18)

G08069291

Courtesy of AMERICAN HONDA MOTOR CO., INC.

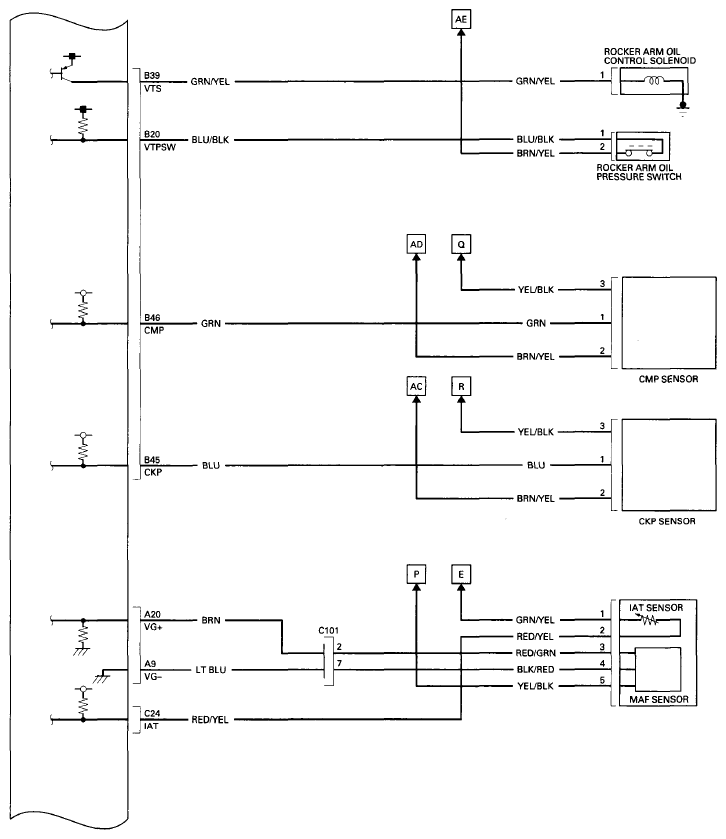

Fig 7: ECM/PCM - Circuit Diagram (7 Of 18)

G08069292

Courtesy of AMERICAN HONDA MOTOR CO., INC.

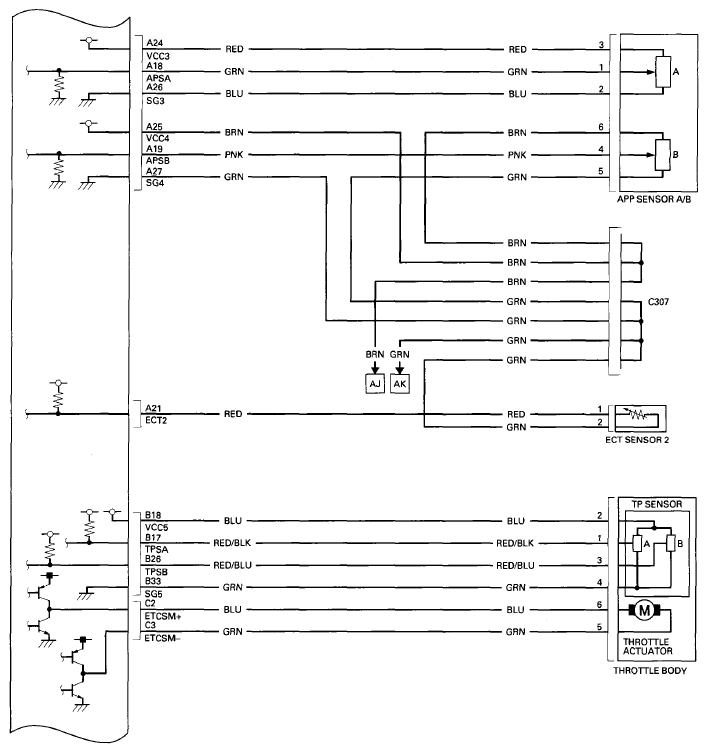

Fig 8: ECM/PCM - Circuit Diagram (8 Of 18)

G08069293

Courtesy of AMERICAN HONDA MOTOR CO., INC.

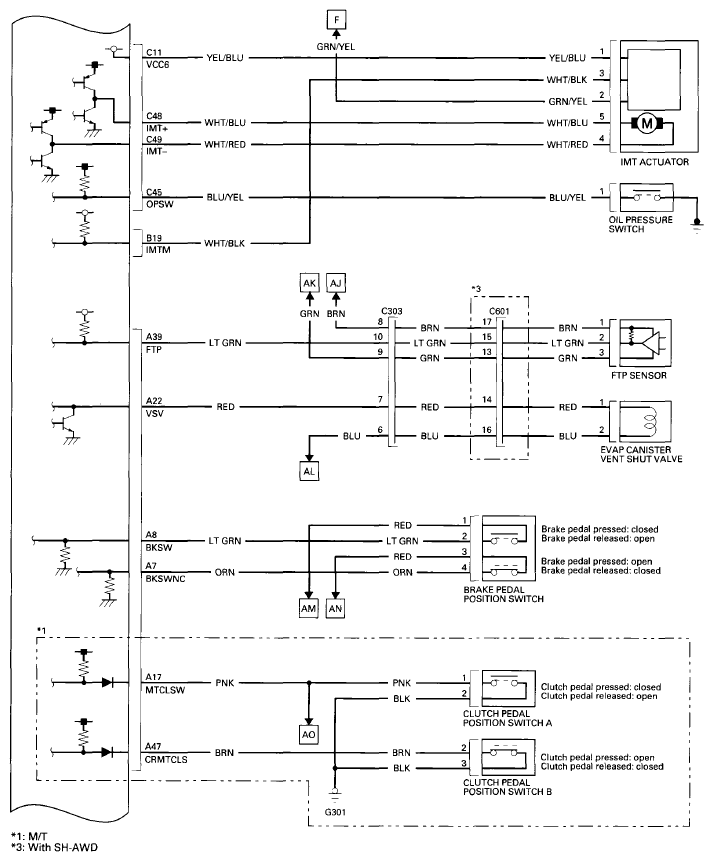

Fig 9: ECM/PCM - Circuit Diagram (9 Of 18)

G08069294

Courtesy of AMERICAN HONDA MOTOR CO., INC.

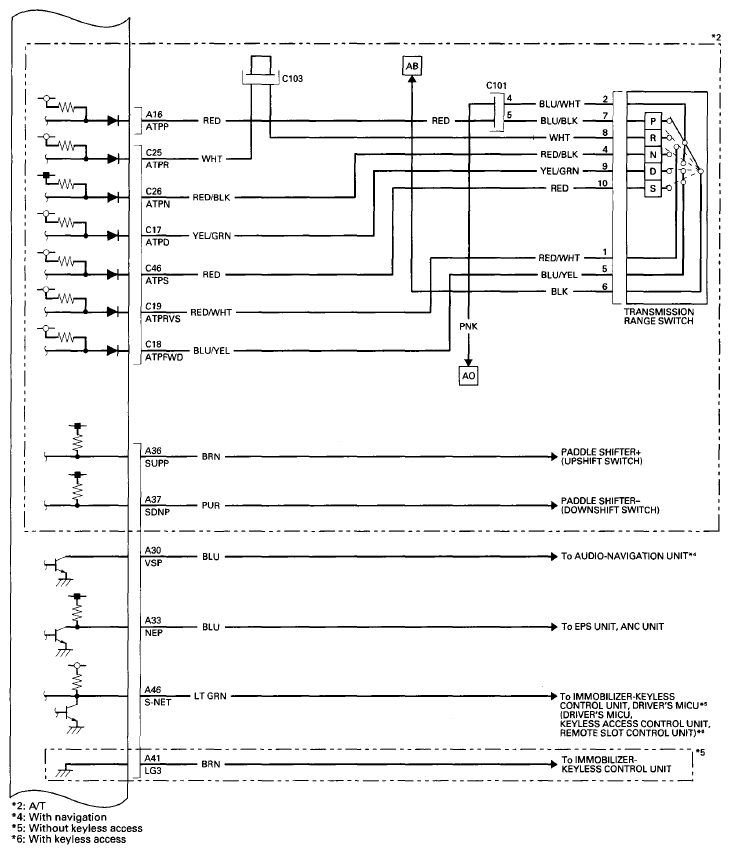

Fig 10: ECM/PCM - Circuit Diagram (10 Of 18)

G08069295

Courtesy of AMERICAN HONDA MOTOR CO., INC.

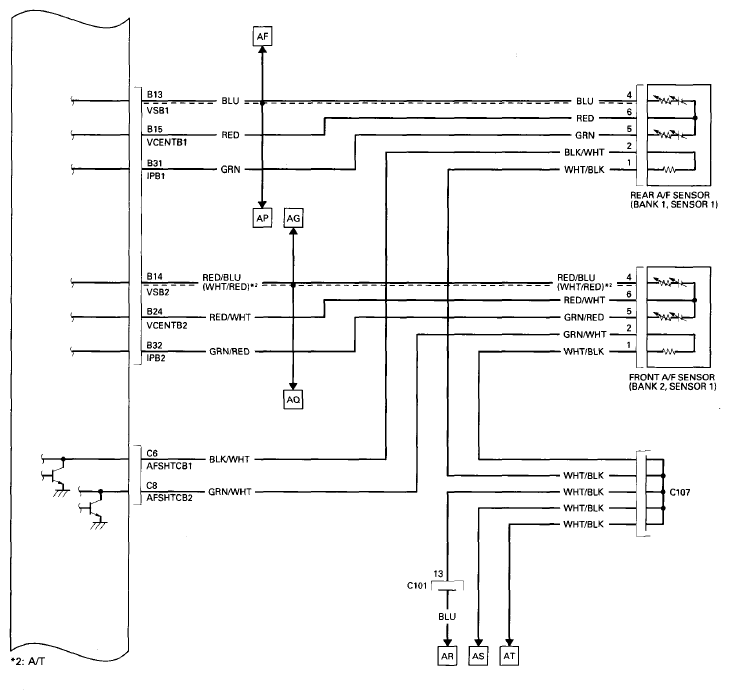

Fig 11: ECM/PCM - Circuit Diagram (11 Of 18)

G08069296

Courtesy of AMERICAN HONDA MOTOR CO., INC.

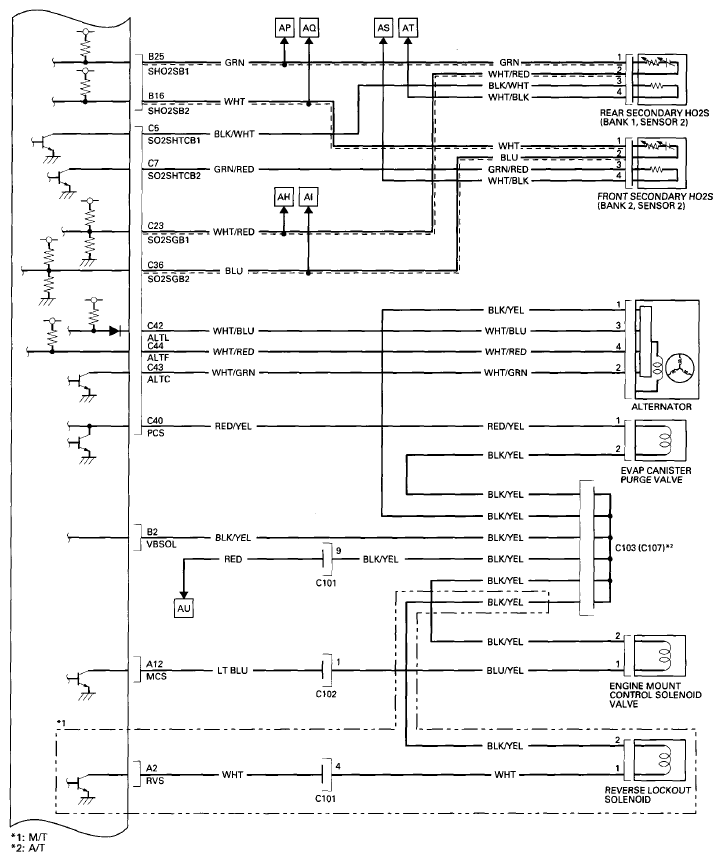

Fig 12: ECM/PCM - Circuit Diagram (12 Of 18)

G08069297

Courtesy of AMERICAN HONDA MOTOR CO., INC.

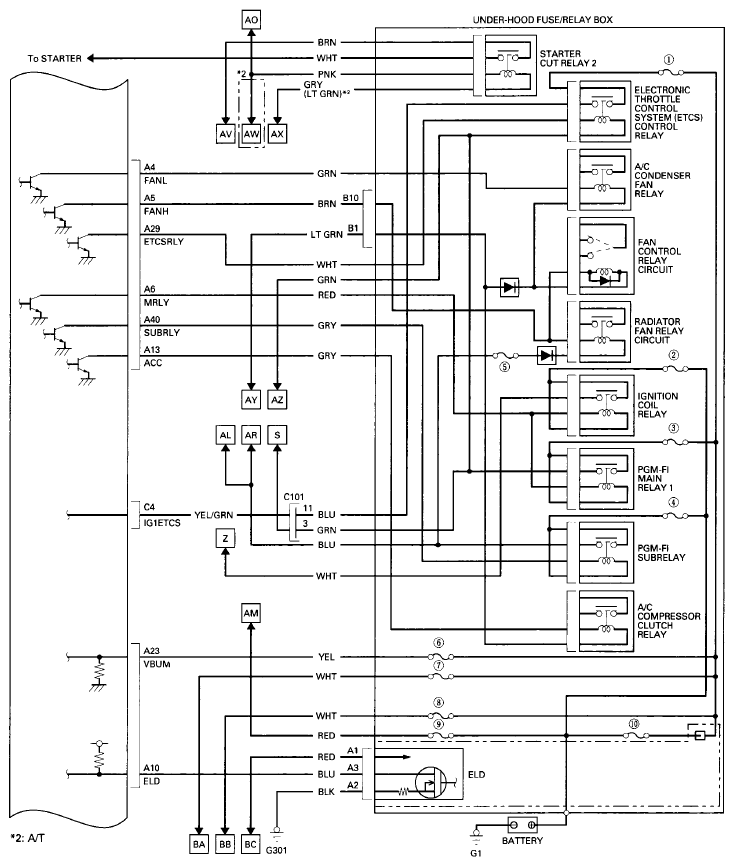

Fig 13: ECM/PCM - Circuit Diagram (13 Of 18)

G08069298

Courtesy of AMERICAN HONDA MOTOR CO., INC.

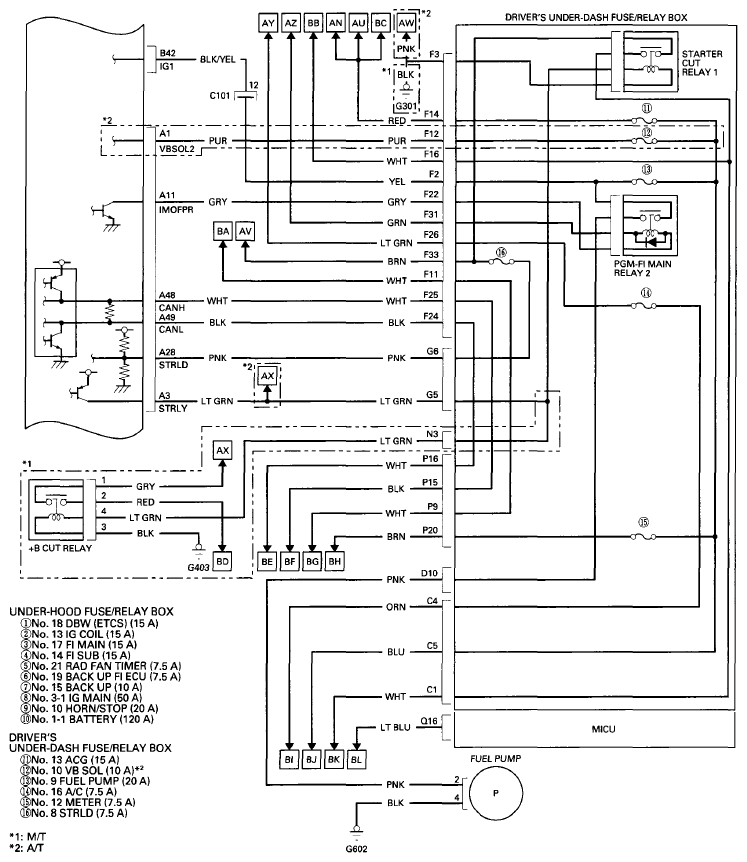

Fig 14: ECM/PCM - Circuit Diagram (14 Of 18)

G08069299

Courtesy of AMERICAN HONDA MOTOR CO., INC.

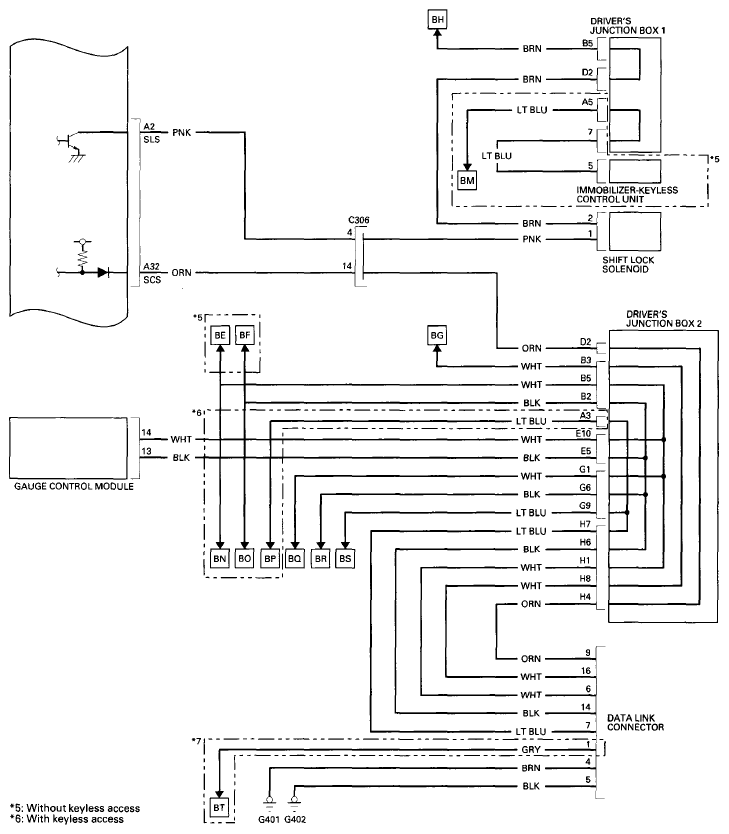

Fig 15: ECM/PCM - Circuit Diagram (15 Of 18)

G08069300

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: ECM/PCM - Circuit Diagram (16 Of 18)

G08069301

Courtesy of AMERICAN HONDA MOTOR CO., INC.

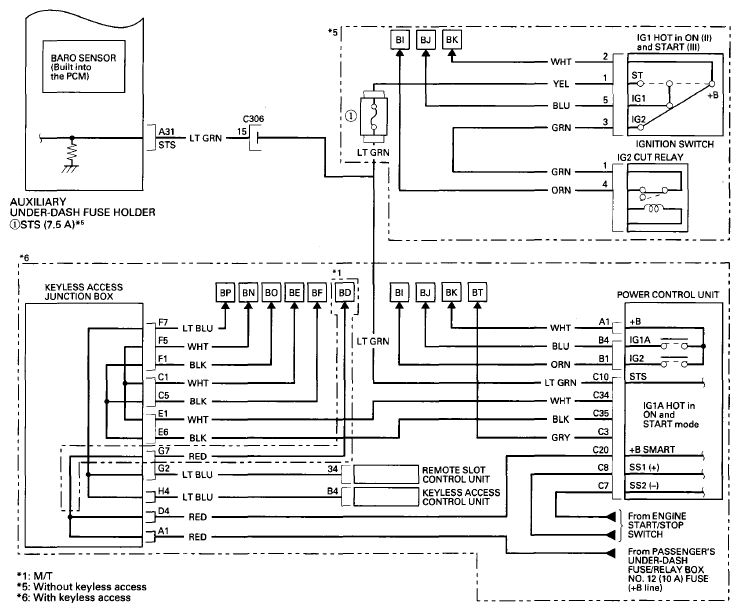

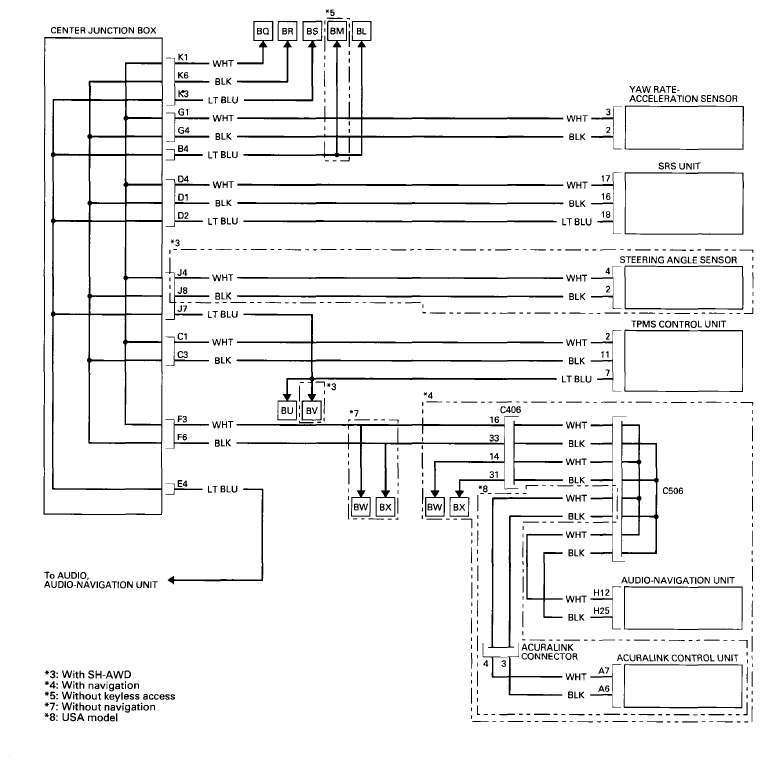

Fig 17: ECM/PCM - Circuit Diagram (17 Of 18)

G08069302

Courtesy of AMERICAN HONDA MOTOR CO., INC.

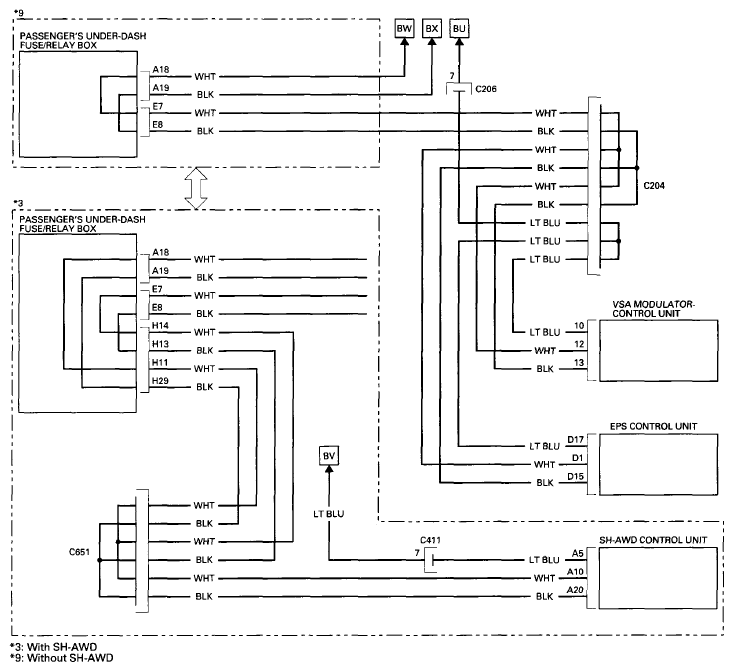

Fig 18: ECM/PCM - Circuit Diagram (18 Of 18)

G08069303

Courtesy of AMERICAN HONDA MOTOR CO., INC.
