Without SH-AWD

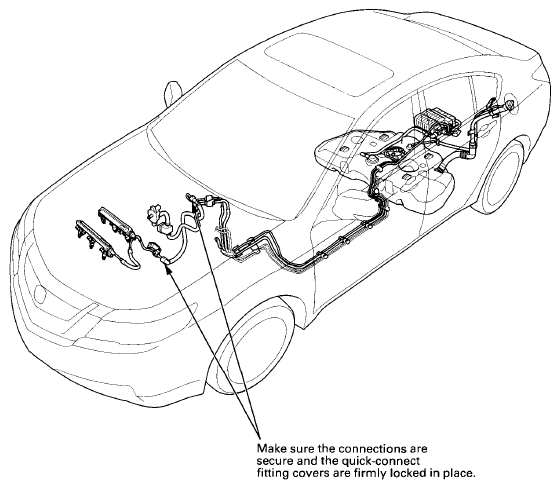

Fig 1: Overview Of Fuel System Lines And Hoses (Without SH-AWD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps, and make sure they are properly positioned and tightened.

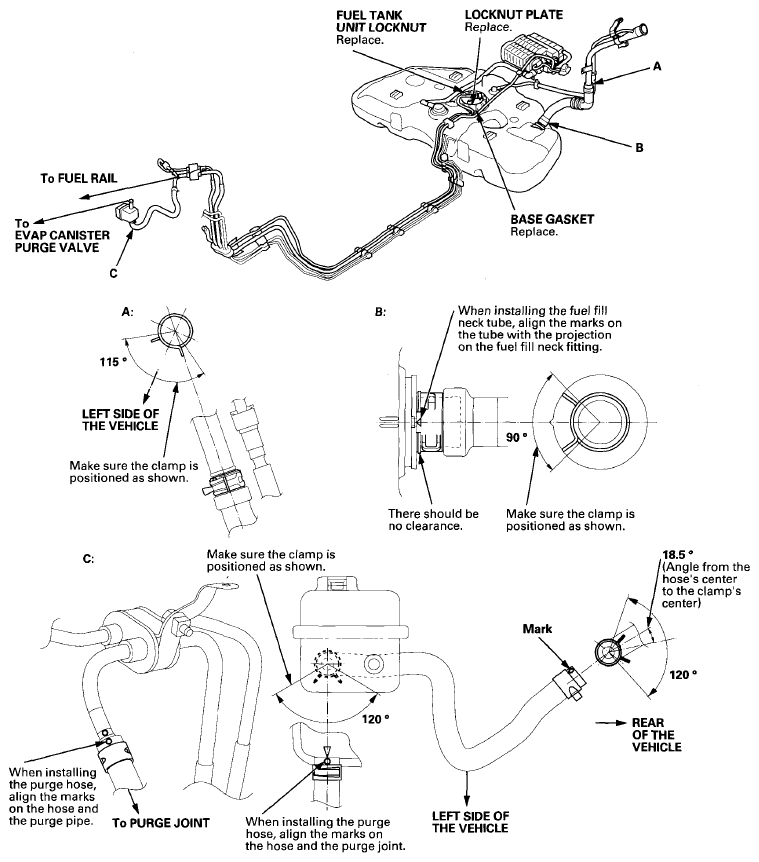

Fig 1: Identifying Fuel Line Clamps Positions (Without SH-AWD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.
