IMT Actuator Replacement

Disconnect the IMT actuator 5P connector (A).

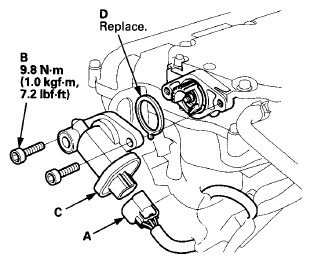

Fig 1: IMT Actuator 5P Connector And Actuator, O-Ring And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (B) and the IMT actuator (C).
Install the parts in the reverse order of removal with a new O-ring (D).
