Intake Air Resonator Removal/Installation

Remove the splash separator (A).

Fig 1: Identifying Splash Separator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
Remove the air cleaner (see ).
Remove the battery base (A).
A/T

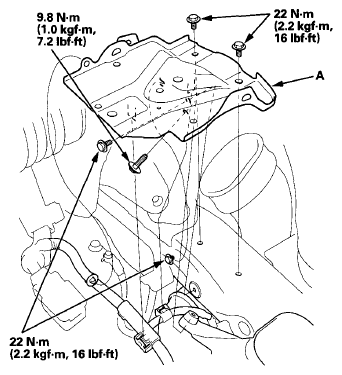

Fig 2: Battery Base With Torque Specifications (A/T)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

M/T

Fig 3: Battery Base With Torque Specifications (M/T)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake air duct (A).

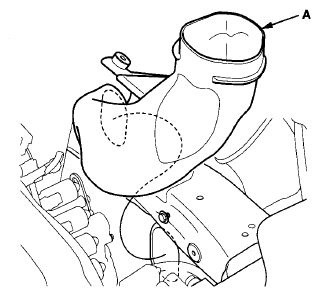

Fig 4: Identifying Intake Air Duct
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
Remove the intake air resonator (A).

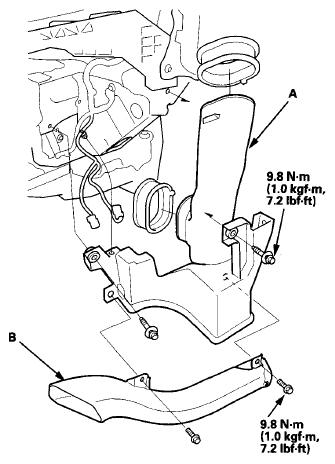

Fig 5: Intake Air Resonator And Brake Duct With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
J37A4 engine: Remove the brake duct (B).
Install the parts in the reverse order of removal.
Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
