PCV Valve Replacement

  1. Lift up the harness cover (A).

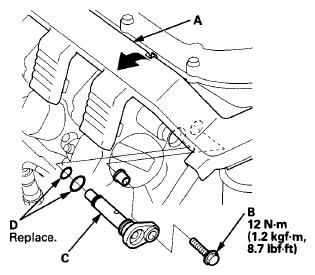

    Fig 1: Harness Cover, Bolt And PCV Valve With Torque Specifications
    G08069871Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolt (B).
  3. Remove the PCV valve (C).
    NOTE: Do not to spill oil on the hot exhaust manifold.
  4. Install the parts in the reverse order of removal.
NOTE:
  • When installing a new PCV valve, make sure the O-rings (D) are in place.
  • When installing a used PCV valve, use new O-rings.
