Rear Bank(Bank 1)

  1. Disconnect the rear A/F sensor 6P connector (A), then remove the A/F sensor (B).

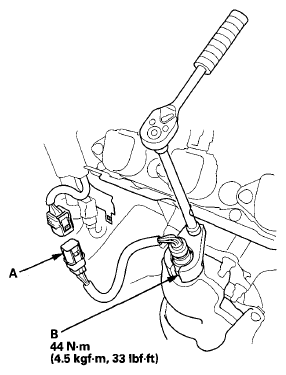

    Fig 1: Rear A/F Sensor 6P Connector And A/F Sensor With Torque Specifications
    G08069581Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the parts in the reverse order of removal.
