Steering Lock Replacement
- Remove the steering column (see STEERING COLUMN REMOVAL AND INSTALLATION
).
- Center-punch both of the shear bolts (A), and drill their heads off with a 5 mm (0.20 in) drill bit. Be careful not to damage the steering lock when removing the shear bolts.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the shear bolts from the steering lock (B), then remove the steering lock.
- Remove the immobilizer-keyless control unit from the steering lock, then install it on the new steering lock (see
IMMOBILIZER-KEYLESS CONTROL UNIT REGISTRATION
).
- Install the steering lock without the key inserted.
- Loosely tighten the new shear bolts.
- Insert the ignition key, and check for proper operation of the steering wheel lock and that the ignition key turns freely.

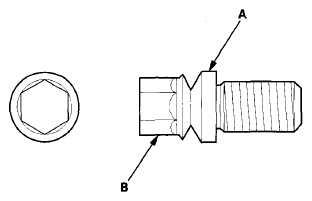

- Tighten the shear bolts (A) until the hex heads (B) twist off.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the steering column (see INSTALLATION
).
- Rewrite all new keys to the immobilizer-keyless control unit (see
IMMOBILIZER KEY REGISTRATION
), and make sure the immobilizer system works properly.
