A/T Gear Position Indicator Replacement

  1. Remove the A/T shift panel (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION ).
  2. Remove the A/T gear position indicator (A) from the A/T shift panel (B).

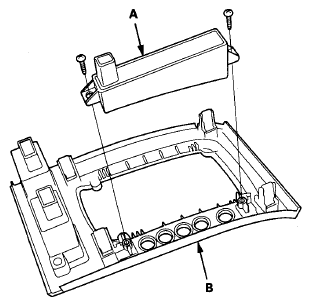

    Fig 1: Removing A/T Gear Position Indicator From A/T Shift Panel
    G08066657Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install a new A/T gear position indicator with the screws.
  4. Install the A/T shift panel (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION ).
