Exploded View

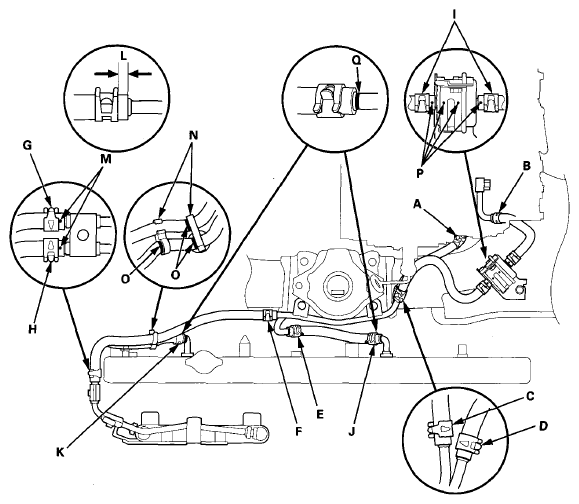

Fig 1: Exploded View Of ATF Cooler Hose

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: When installing the hose clamps, make sure they do not interfere with the surrounding parts.

Install the ATF cooler hoses over the ATF cooler lines with the clips at the appropriate points in reference to the following list. Align the white paint marks (M) facing the right of the vehicle.

Point	Distance from Hose End to Clip (L)	Hose End Contact Point
A	6 - 8 mm (0.24 - 0.31 in)	Bulge
B
C
D
E
F
G
H
I		Nearest point to ATF filter housing
J	2 - 4 mm (0.08-0.16 in)	Paint Mark (Q)
K	2 - 4 mm (0.08-0.16 in)	Paint Mark (Q)

Secure the ATF cooler hose with the clamps (N) at the white paint line (O) in the direction shown.
Align the paint marks (P) facing up of the vehicle.
Refill the transmission with ATF to the proper level (see ATF REPLACEMENT ).
