Circuit Diagram

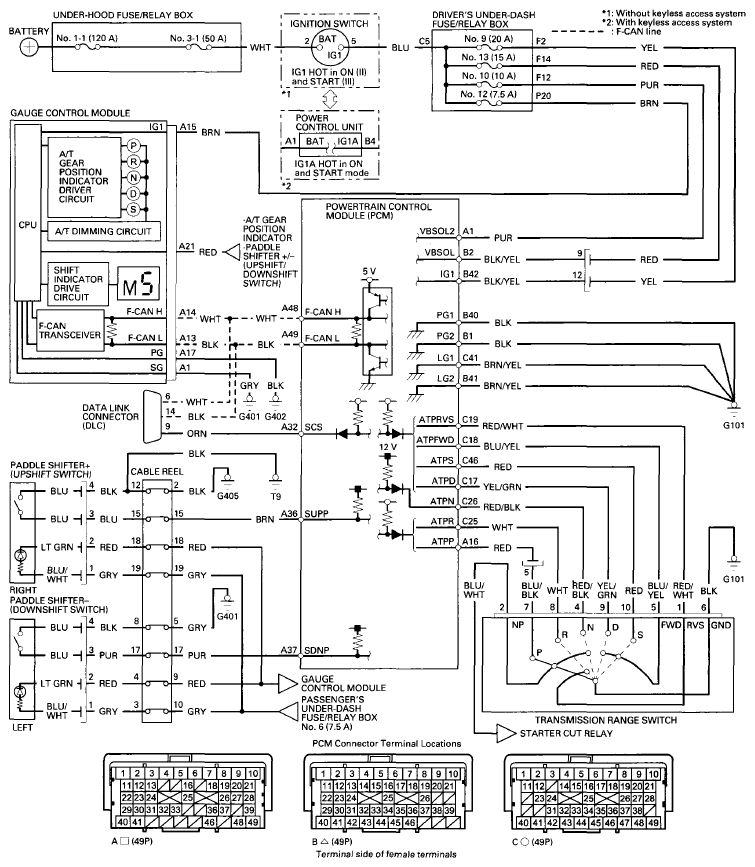

Fig 1: A/T Gear Position Indicator - Circuit Diagram
G08066626Courtesy of AMERICAN HONDA MOTOR CO., INC.

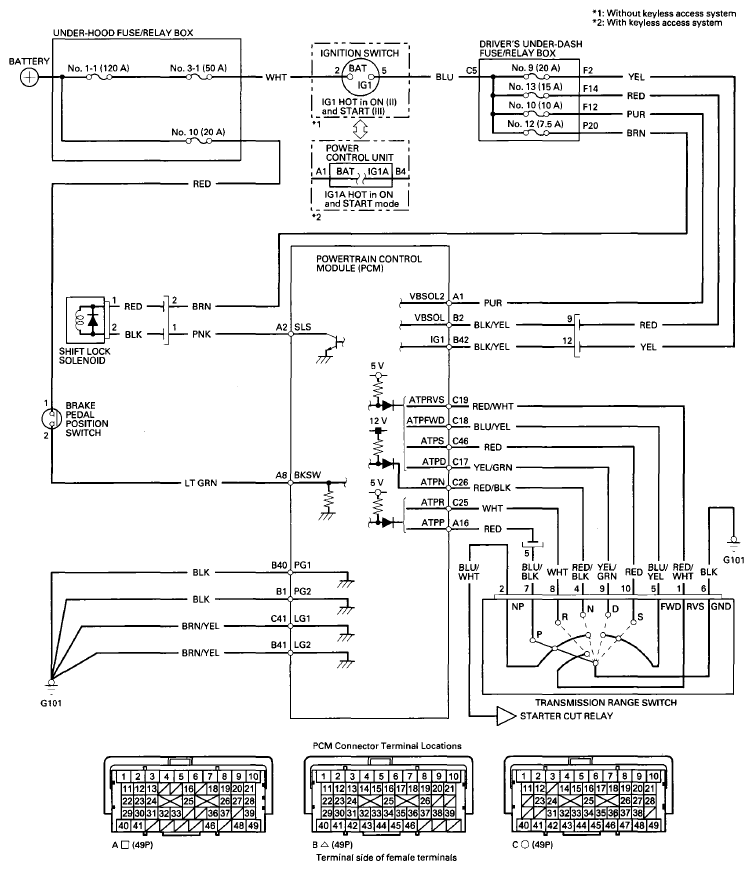

Fig 1: A/T Inter Lock System - Circuit Diagram
G08066659Courtesy of AMERICAN HONDA MOTOR CO., INC.
