Component Location Index: Overview

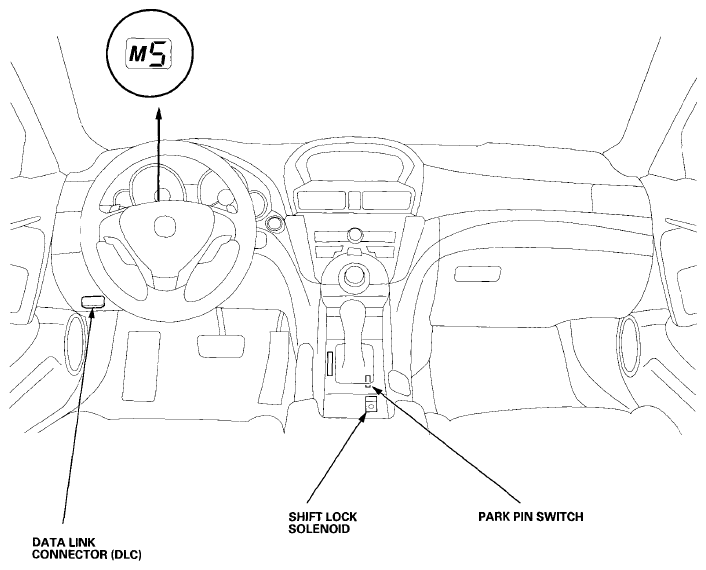

Fig 1: Identifying Automatic Transmission Components Location (1 Of 2)
G08066295Courtesy of AMERICAN HONDA MOTOR CO., INC.

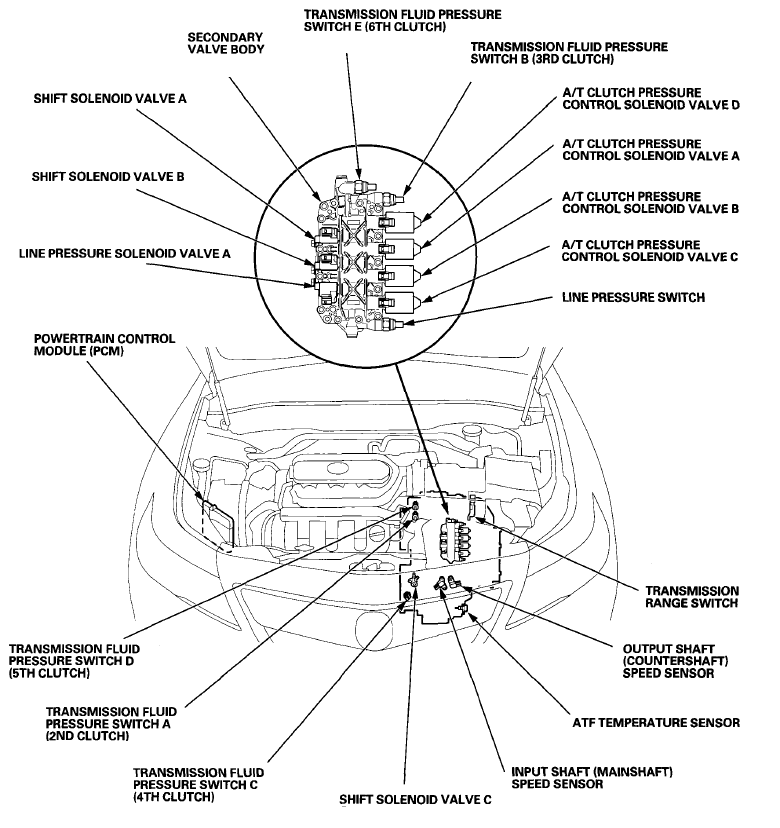

Fig 2: Identifying Automatic Transmission Components Location (2 Of 2)
G08066296Courtesy of AMERICAN HONDA MOTOR CO., INC.

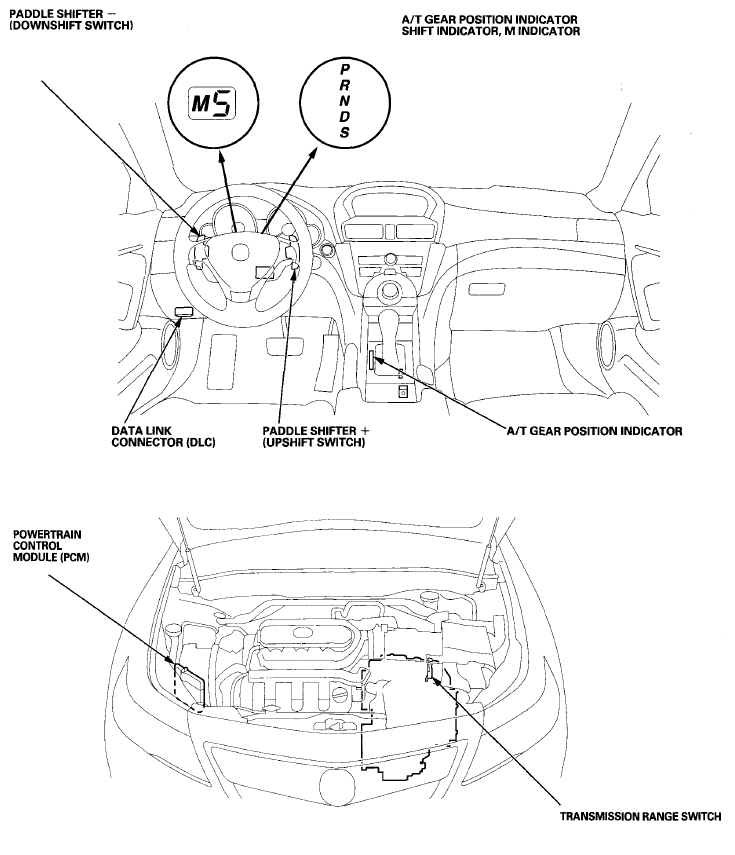

Fig 1: Identifying A/T Gear Position Indicator Components Location
G08066625Courtesy of AMERICAN HONDA MOTOR CO., INC.

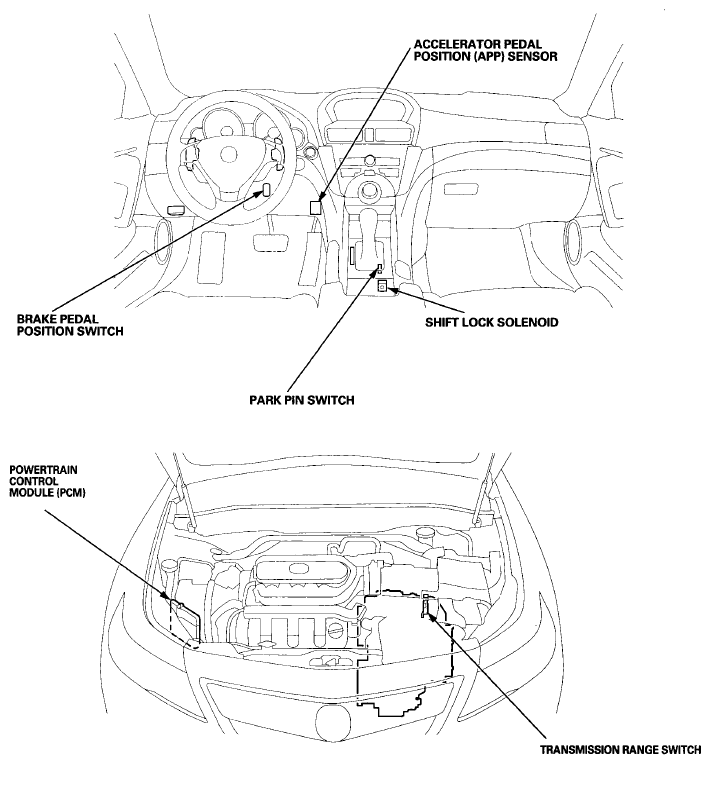

Fig 1: Identifying A/T Inter Lock System Components Location
G08066658Courtesy of AMERICAN HONDA MOTOR CO., INC.


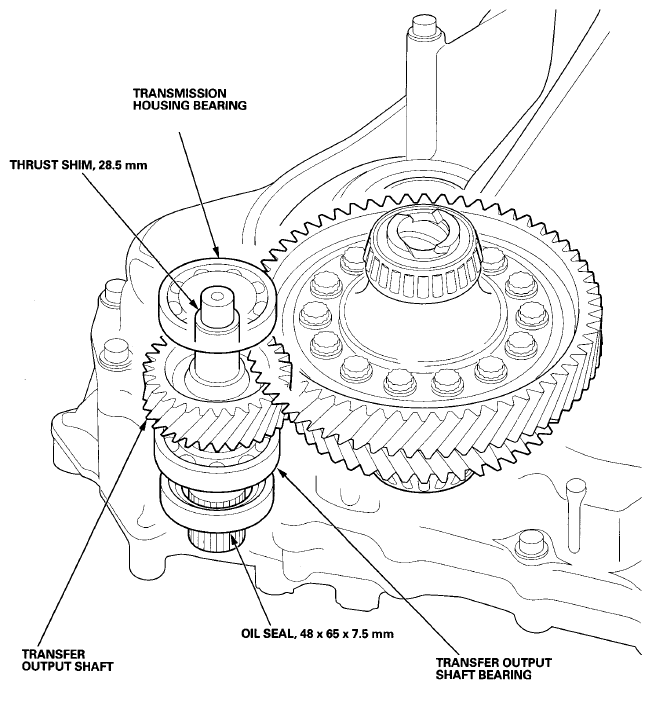

Fig 1: Identifying Transfer Output Shaft Components Location
G08066877Courtesy of AMERICAN HONDA MOTOR CO., INC.

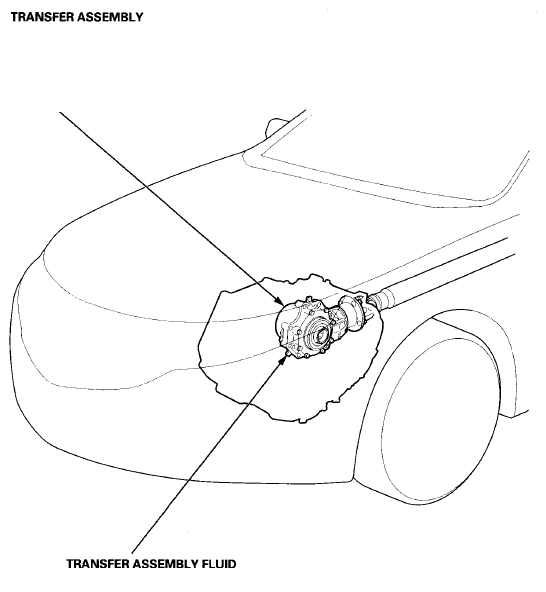

Fig 1: Identifying Transfer Assembly Components Location
G08066889Courtesy of AMERICAN HONDA MOTOR CO., INC.
