With SH-AWD

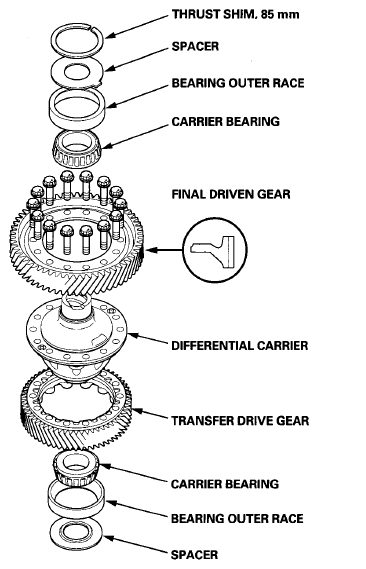

Fig 1: Identifying A/T Differential And Related Components (With SH-AWD)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
